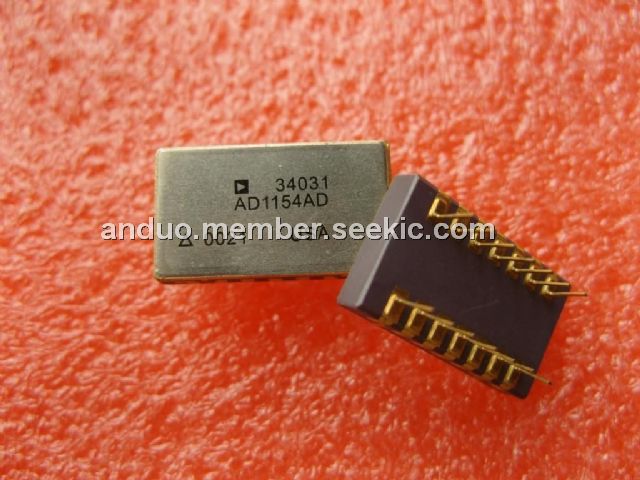

Product Summary

The AD1154AD is a high accuracy, low cost sample-and-hold amplifier. It is designed to be used in high resolution data acquisition systems. The applications of the AD1154AD are medical and analytical instrumentation, automatic test equipment, data acquisition for signal processing, simultaneous sample-and-hold, peak measurement detection, event analysis.

Parametrics

AD1154AD absolute maximum ratings: (1)analog input voltage range:±10V; (2)analog overvoltage:±VS; (3)input capacitance:10pF; (4)rated performance temperature range:-25 to +85℃; (5)storage temperature:-40 to +125℃.

Features

AD1154AD features: (1)low nonlinearity:±7.6ppm max; (2)fast acquisition time to ±0.00076%:3.5us; (3)low droop rate:0.02uV/us; (4)aperture jitter:150ps; (5)±10V input range; (6)hold mode feed through rejection of -106dB; (7)hermetic 14-pin ceramic DIP; (8)low cost.

Diagrams

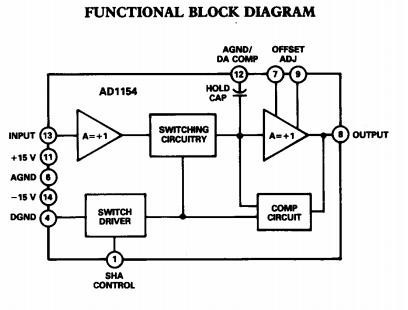

AD1154AD block diagram
