Product Summary

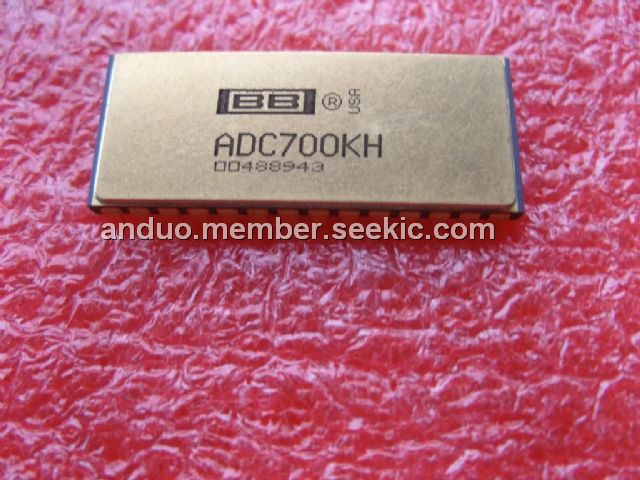

The ADC700KH is a complete 16-bit resolution successive approximation analog-to-digital converter.
Parametrics
ADC700KH absolute maximum ratings: (1)+VDD to Digital Common:0V to +7V; (2)+VCC to Analog Common:0V to +18V; (3)–VCC to Analog Common:0V to –18V; (4)Digital Common to Analog Common:–1V to +1V; (5)Digital Inputs to Digital Common:–0.5V to VDD+0.5V; (6)Analog Inputs: +16.5V; (7)Power Dissipation:1000mW; (8)Storage Temperature:–60℃ to +150℃; (9)Lead Temperature, (soldering, 10s):+300℃.
Features
ADC700KH features: (1)complete with reference, clock, 8-bit port microprocessor interface; (2)conversion time: 17μs max; (3)linearity error: ±0.003% FSR max; (4)no missing codes to 14 bits over temperature; (5)specified at ±12V and ±15V supplies; (6)output buffer latch for improved; (7)interface timing flexibility; (8)parallel and serial data output; (9)small package: 28-Pin DIP.

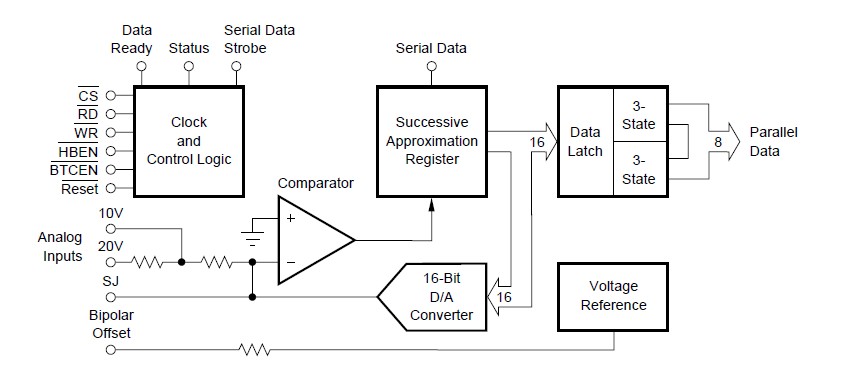

Diagrams
 |
