Product Summary

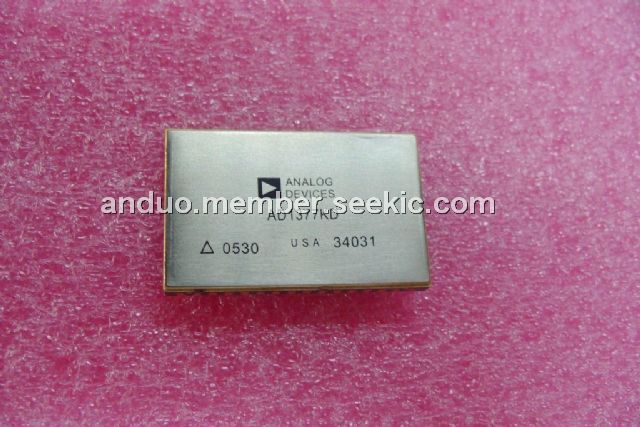

The AD1377KD is a high resolution, 16-bit analog-to-digital converter with internal reference, clock and laser-timmed thin-film applications resistor. The AD1377KD is packaged in a compact 32-pin, ceramic seam sealed dual-in-line packages. The applications of the AD1377KD include medical and analytic instrumentation, precision measurement for industrial robotics, automatic test equipment, and multichannel data acquisition systems, servo control systems, or anywhere wide dynamic range is required.

Parametrics

AD1377KD absolute maximum ratings: (1)supply voltage:±18V; (2)logic supply voltage:7V; (3)analog inputs:±25V; (4)analog ground to digital ground:±0.3V; (5)digital input:-0.3V to VDD+0.3V; (6)junction temperature:+175℃; (7)storage temperature:+15℃; (8)lead temperature:+300℃.

Features

AD1377KD features: (1)complete 16-bit converters with reference and clock; (2)±0.003% maximum nonlinearity; (3)no missing codes to 14bits over temperature; (4)short cycle capability; (5)adjustable clock rate; (6)parallel and serial outputs; (7)industry standard pin out.

Diagrams

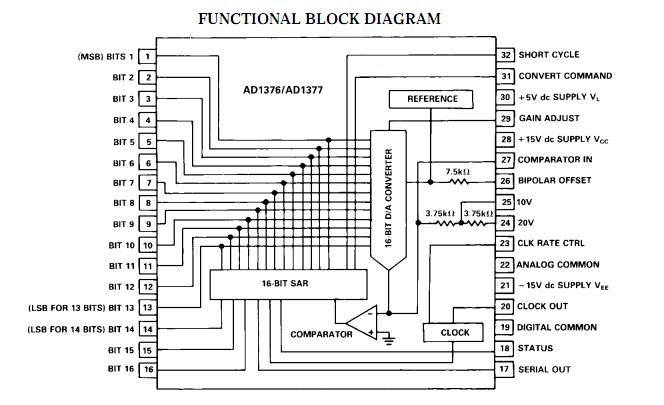

AD1377KD block diagram
