Product Summary

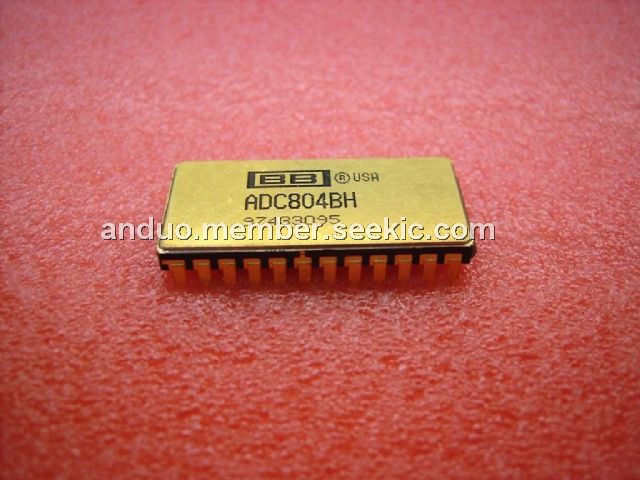

The ADC804BH is a serial output analog-to-digital converter. The ADC804BH is complete with a comparator, a monolithic 12-bit DAC which includes a 6.3v reference laser-trimmed for minimum temperature coefficient, and a cmos logic chip containing the successive approximation register, clock, and all other associated logic functions.
Parametrics
ADC804BH absolute maximum ratings: (1)+VCC to analog common:0 to +16.5V; (2)-VCC to anlaog common:0 to -16.5V; (3)VDD to digital common:0 to +7V; (4)power dissipation:1000mW; (5)lead temperature:+300℃; (6)thermal resistance:60℃/W.
Features
ADC804BH features: (1)17usec conversion time; (2)serial output; (3)＜500mw power dissipation; (4)24-pin dual-wide hermetic package; (5)fully specified for operation on ±12V or ±15V supplies; (6)±0.012% integral linearity; (7)12-bit resolution.
