Product Summary
The KMI15/2 is a integrated rotational speed sensor. It consists of a magnetoresistive sensor element, a signal conditioning integrated circuit in bipolar technology and a magnetized ferrite magnet.
Parametrics
Absolute maximum ratings: (1)VCC, DC supply voltage: 0.5 to 16V when Tamb = -40 to +85 ℃, RL = 115Ω; (2)Tstg, storage temperature: -40 +150℃ when Tamb = -40 to +85 ℃, RL = 115Ω; (3)Tamb, operating ambient temperature: -40 +85℃; (4)Tsld, soldering temperature: 260℃ max when t≤10s.
Features
Features: (1)Digital current output signal; (2)Zero speed capability; (3)Wide air gap; (4)Wide temperature range; (5)Insensitive to vibration; (6)EMC resistant.

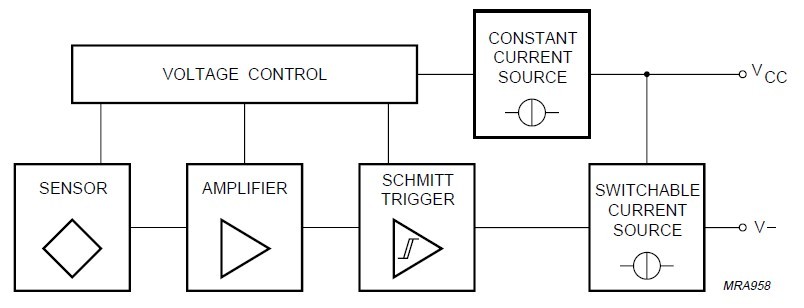

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 KMI15/2 T/R |
NXP Semiconductors |
Speed Sensors SNSR MAGNETIC TAPE-7 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
KMI15/2,115 |
NXP Semiconductors |
Speed Sensors SNSR MAGNETIC TAPE-7 |
Data Sheet |
|
|
||||||||||||
|
KMI15/2B,115 |
|
SPEED SENSOR ROTATIONAL SOT453C |
Data Sheet |
|
|
||||||||||||
