Product Summary

The ADC1251CIJ is a CMOS 12-bit plus sign successive approximation analog-to-digital converter. On request, the ADC1251CIJ goes through a self-calibration cycle that adjusts for any zero, full scale, or linearity errors. The ADC1251CIJ also has the ability to go through an Auto-Zero cycle that corrects the zero error during every conversion.

Parametrics

Absolute maximum ratings: (1)Supply Voltage (VCC e DVCC e AVCC): 6.5V; (2)Negative Supply Voltage: -6.5V; (3)Voltage at Logic Control Inputs: -0.3V to (VCC+0.3V); (4)Voltage at Analog Inputs (VREF, VIN) (V--0.3V) to (VCC+0.3V); (5)AVCC-DVCC: 0.3V; (6)Input Current at Any Pin: ±5 mA; (7)Package Input Current: ±20 mA; (8)Power Dissipation at 25§C: 875 mW; (9)Storage Temperature Range: -65℃ to +150℃; (10)ESD Susceptability: 2000V; (11)Soldering Information J Package (10 sec.): 300℃.

Features

Features: (1)Self-calibration provides excellent temperature stability; (2)Internal sample-and-hold; (3)8-bit mP/DSP interface; (4)Bipolar input range with a single a5V reference; (5)No missing codes over temperature; (6)TTL/MOS input/output compatible.

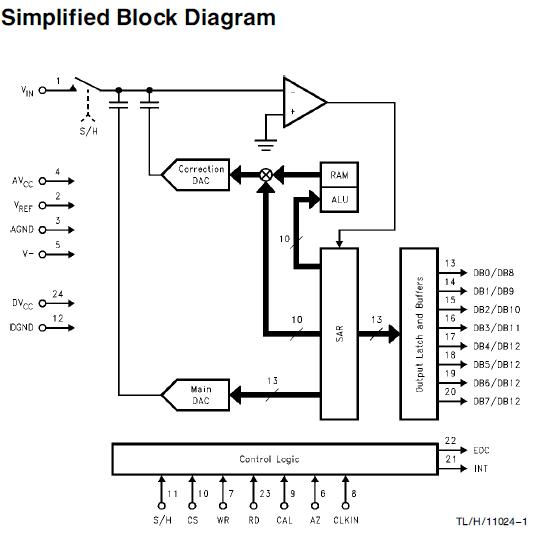

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADC1251CIJ
ADC1251CIJ

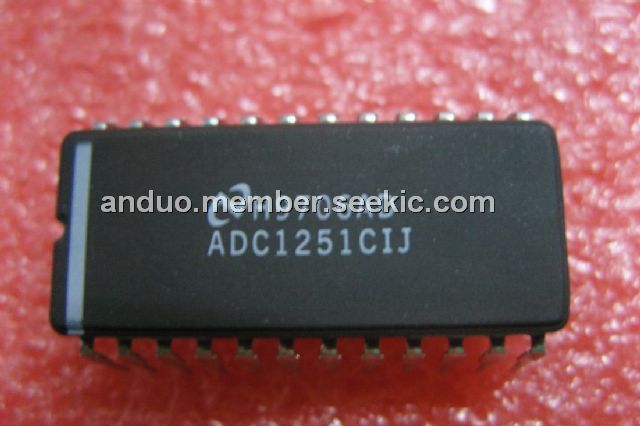

IC ADC 12BIT W/S&H +SIGN 24CDIP

Data Sheet

Negotiable
