Product Summary

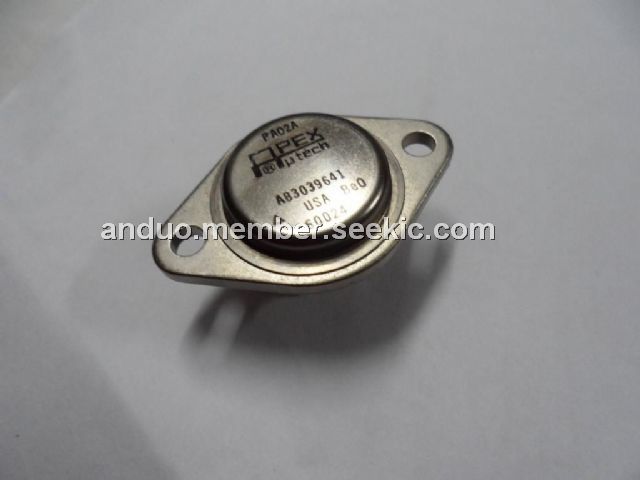

The PA02A is a wideband, high output current operational amplifier designed to drive resistive, inductive and capacitive loads. The applications of the PA02A are motor, valve and actuator control, magnetic deflection circuits up to 5a, power transducers up to 350 khz, audio amplifiers up to 30w rms.
Parametrics
PA02A absolute maximum ratings: (1)supply voltage, +VS to -VS: 38V; (2)output current, within SOA: 5A; (3)power dissipation, internal:48W; (4)input voltage, differential: ±VS-5V; (5)input voltage, common mode: ±VS-2V; (6)temperature, pin solder -10s: 300℃; (7)temperature, junction1:150℃; (8)temperature range, storage:-65 to +150℃; (9)operating temperature range, case:-55 to +125℃.
Features
PA02A features: (1)high power bandwidth: 350kHz; (2)high slew rate: 20V/us; (3)fast settling time: 600ns; (4)low crossover distortion: Class A/B; (5)low internal losses: 1.2V at 2A; (6)high output current: ±5A PEAK; (7)low input bias current: FET Input; (8)isolated case: 300 VDC.

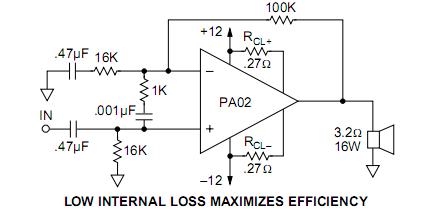

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PA02A |
Cirrus Logic |
Operational Amplifiers - Op Amps Linear OpAmp 38V 5A A Grade |
Data Sheet |
Negotiable |
|
||||
|
PA02A-S |
Cirrus Logic |
Operational Amplifiers - Op Amps Linear OpAmp 38V 5A "A" Grade |
Data Sheet |
Negotiable |
|
||||
