Product Summary
The PGA100BG is a precision, digitally-programmable gain amplifier combined with an 8 channel ±35V protected input multiplexer. The applications of the PGA100BG are data acquisition amplifier, software error correction, digital-controlled autoranging, test equipment, remote instrumentation system, system dynamic range and resolution improvement.
Parametrics
PGA100BG absolute maximum ratings: (1)analog supply:±18V; (2)digital supply:+7V; (3)input voltage range analog:V- -20V≤VIN≤V+ +20V; (4)input voltage range digital:-0.3V≤VIN≤+7V; (5)storage temperature:-65 to +160℃; (6)lead temperature:300℃; (7)junction temperature:175℃; (8)power dissipation:1W.
Features
PGA100BG features: (1)high gain accuracy ±0.02% max; (2)input protection, ±20V above ±15V supplies; (3)high input impedance:1011Ω; (4)fast settling, 5usec to 0.01%; (5)low channel to channel crosstalk, -90dB; (6)low nonlinearity ±0.005% max; (7)8 analog input channels.

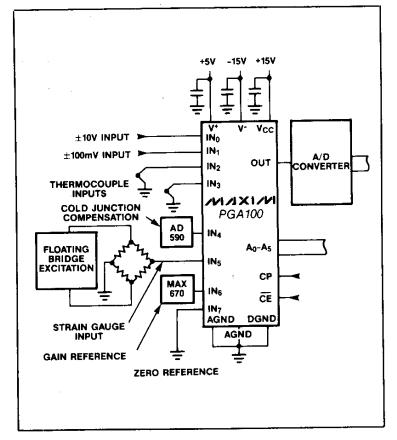

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PGA100BG |
Texas Instruments |
IC OPAMP PROG GAIN 5MHZ 24CDIP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
PGA100 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PGA100AG |
Texas Instruments |
IC OPAMP PROG GAIN 5MHZ 24CDIP |
Data Sheet |
Negotiable |
|
||||
|
PGA100BG |
Texas Instruments |
IC OPAMP PROG GAIN 5MHZ 24CDIP |
Data Sheet |
Negotiable |
|
||||
|
PGA101H004B1-1321R |
FCI |
PGA SOCKET 101 CTS |
Data Sheet |
Negotiable |
|
||||
|
PGA101H012B1-1321R |
FCI |
PGA SOCKET 101 CTS |
Data Sheet |
Negotiable |
|
||||
|
PGA102 |
Other |
|
Data Sheet |
Negotiable |
|
||||
