Product Summary

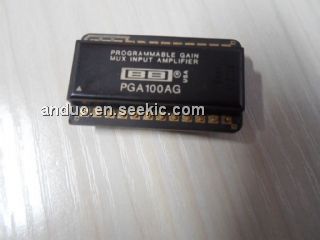

The PGA100AG is a precision, digitally-programmable gain amplifier (PGA) combined with an 8 channel ±35V protected input multiplexer. The user can select any one of eight analog input channels to be amplified by one of the eight noninverting binarily weighted gain steps from 1 to 128. The digital gain and channel select are internally latched for easy microprocessor interface. The fast 5"sec settling time allows the PGA100AG to be used in rapid channel scanning data acquisition systems. The applications of the PGA100AG include Data Acquisition Amplifier, Software Error Correction, Digitally-Controlled Autoranging, Test Equipment, Remote Instrumentation System, System Dynamic Range and Resolution Improvement.
Parametrics
PGA100AG absolute maximum ratings: (1)Analog supply(V+, V-): ±18V; (2)Digital supply, VCC: +7V; (3)Input voltage range analog: V- -20V≤VIN≤V+ +20V; (4)Input voltage range digital: -0.3≤VIN≤+7V; (5)Storage temperature range: -65 to +160℃; (6)Lead temperature: 300℃; (7)Output short-circuit duration: continuous to ground; (8)Junction temperature: 175℃; (9)Power disspation: 1W.
Features
PGA100AG features: (1)High Gain Accuracy ±0.02% max (B Grade); (2)Input protection, ±20V above ±15V supplies; (3)High Input Impedance: 1011Ω; (4)Fast Settling, 5μsec to 0.01%; (5)Low Channel to Channel Crosstalk, -90dB; (6)Low nonlinearity ±0.005% max (B Grade); (7)8 analog input channels; (8)8 Selectable Gains, 1，2, 4, 8, 16, 32, 64，128 V/V; (9)Fully microprocessor-compatible.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PGA100AG |
Texas Instruments |
IC OPAMP PROG GAIN 5MHZ 24CDIP |
Data Sheet |
Negotiable |
|
||||
