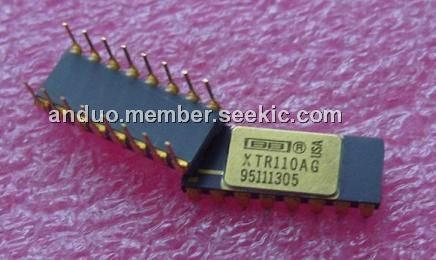

Product Summary

The XTR110AG is a precision voltage-to-current converter designed for analog signal transmission. It accepts inputs of 0 to 5V or 0 to 10V and can be connected for outputs of 4 to 20mA, 0 to 20mA, 5 to 25mA and many other commonly used ranges.

Parametrics

Absolute maximum ratings: (1)Power Supply, +VCC: 40V; (2)Input Voltage, VIN1, VIN2, VREF IN: +VCC; (3)Storage Temperature Range: A, B –55℃ to +125℃, K, U –40℃ to +85℃; (4)Lead Temperature (soldering, 10s) G, P: 300℃, (wave soldering, 3s) U: 260℃; (5)Output Short-Circuit Duration, Gate Drive and VREF Force: Continuous to common and +VCC; (6)Output Current Using Internal 50W Resistor: 40mA.

Features

Features: (1)4mA TO 20mA transmitter; (2)selectable input/output ranges: 0V to +5V, 0V to +10V Inputs, 0mA to 20mA, 5mA to 25mA Outputs; (3)Other Ranges, 0.005% max nonlinearity, 14 BIT; (4)precision +10V reference output; (5)single supply operation; (6)wide supply range: 13.5V to 40V.

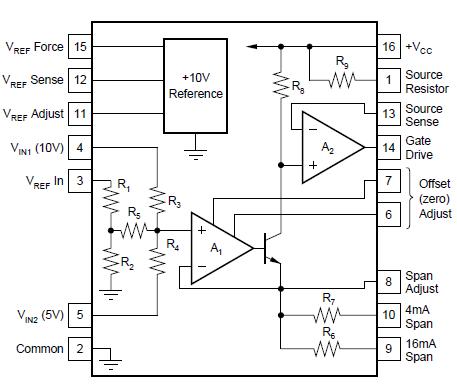

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XTR110AG
XTR110AG

Texas Instruments

Current Sense Amplifiers Prec Vltg-To-Crnt Cnertr/Trnsmtr

Data Sheet

0-1: $43.95
1-25: $39.53
25-100: $37.73
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XTR100
XTR100

Other


Data Sheet

Negotiable
XTR101
XTR101

Other


Data Sheet

Negotiable
XTR101AG
XTR101AG

Texas Instruments

Current Sense Amplifiers Prec Lo-Drift 4-20mA 2-Wire Trnsmtr

Data Sheet

0-1: $47.82
1-25: $42.70
25-100: $40.33
XTR101AP
XTR101AP

Texas Instruments

Current Sense Amplifiers Prec Lo-Drift 4-20mA 2-Wire Trnsmtr

Data Sheet

0-1: $10.32
1-10: $9.40
10-25: $8.68
25-50: $8.39
XTR101APG4
XTR101APG4

Texas Instruments

Current Sense Amplifiers Prec Lo-Drift 4-20mA 2-Wire Trnsmtr

Data Sheet

0-1: $10.32
1-10: $9.40
10-25: $8.68
25-50: $8.39
XTR101AU
XTR101AU

Texas Instruments

Current Sense Amplifiers Prec Lo-Drift 4-20mA 2-Wire Trnsmtr

Data Sheet

0-1: $12.40
1-10: $11.29
10-25: $10.43
25-50: $10.07
