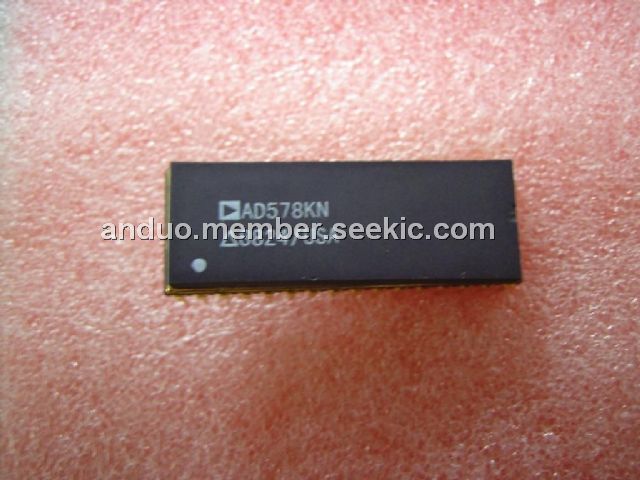

Product Summary

The AD578KN is a high speed 12-bit successive approximation analog-to-digital converter that includes internal clock, reference, and comparator. Its hybrid dasign utilizess MSI digital and linear ICs in conjunction with a 12-bit monolithic, monotonic DAC to provide superior performance and versatility with IC size, price, and reliability. The AD578KN includes scaling resistors that provide analog input signal ranges of ±10V, and 0 to +10V. The AD578KN is contained in 32-pin ceramic side-brazed DIP package, and is available with MIL-STD-883 class B processing.

Features

AD578KN features: (1)Complete 12-bit A/D converter with reference and clock; (2)Fast conversion: 3μs(max); (3)Buried zener reference for long term stability and low gain T.C: ±30 ppm/℃ max; (4)Max nonlinearity: <±0.012%; (5)No missing codes over temperature; (6)Low power: 555mW; (7)Available to MIL-STD-883.

Diagrams

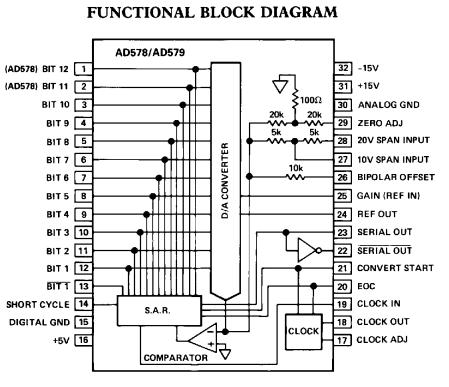

AD578KN block diagram
