Product Summary

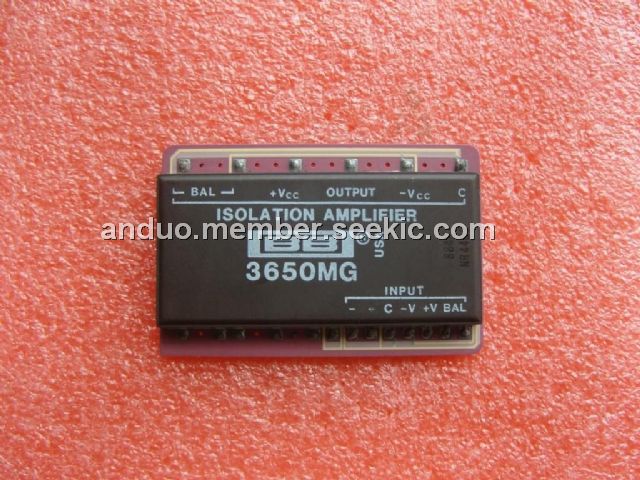

The 3650MG is a kind of Optically-Coupled Linear Isolation Amplifier.Compared to these earlier isolation amplifier, the 3650MG has the advantage of smaller size,lower cost, wider bandwidth and integrated circuit reliability. Also, because it uses a DC analog modulation technique as opposed to a carrier-type technique, the 3650MG avoids the problems of electromagnetic interference (both transmitted and received) that most of the modular isolation amplifiers exhibit. The typical applications of 3650MG include: (1)Industrial process control; (2)Data acquisition; (3)Interface element; (4)Biomedical measurements; (5)Patient monitoring; (6)Test equipment; (7)Current shunt measurement; (8)Ground-loop elimination; (9)SCR controls.
Parametrics
3650MG absloute maximum ratings: (1)Output Voltage, min: ±10V; (2)Output Current, min: ±5mA; (3)Output Noise Voltage: 0.05Hz to 100Hz: 50mVp-p; 10Hz to 1kHz: 65mVrms; (4)Power Supply (Output Stage Only): Voltage (+VCC and –VCC): ±8V to ±18V; Current Quiescent : ±2.3mA typ, ±6mA max; with ±5mA Output, max: ±11mA; (5)Specification Temperature: 0℃ to +85℃; (6)Operating Temperature: –40℃ to +100℃; (7)Storage Temperature: –40℃ to +125℃.
Features
3650MG features: (1)BALANCED INPUT; (2)LARGE COMMON-MODE VOLTAGES: ±2000V Continuous; 140dB Rejection; (3)ULTRA LOW LEAKAGE: 0.35mA max at 240V/60Hz; 1.8pF Leakage Capacitance; (4)EXCELLENT GAIN ACCURACY: 0.05% Linearity; 0.05%/1000 Hrs Stability; (5)WIDE BANDWIDTH: 15kHz ±3dB; 1.2V/μs Slew Rate.

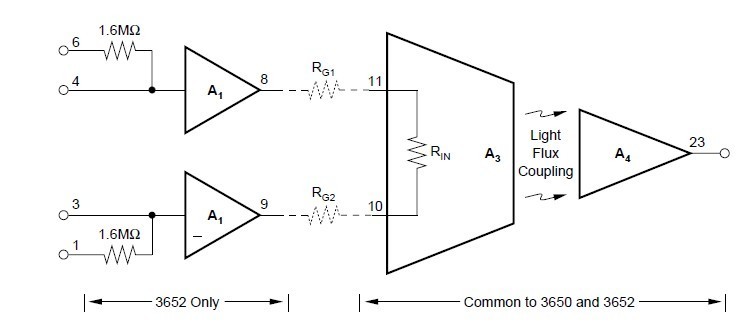

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 3650MG |
Texas Instruments |
Special Purpose Amplifiers Optically Coupled Linear Iso Amp |
Data Sheet |
Negotiable |
|
||||||||||||
