Product Summary

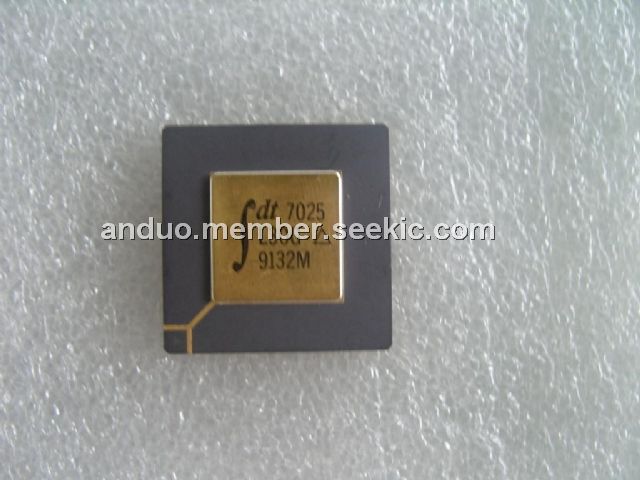

The IDT7025L30G is a high-speed 8K x 16 Dual-Port Static RAM. The IDT7025L30G is designed to be used as a stand-alone 128K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit or more word systems. The IDT7025L30G provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory.
Parametrics
IDT7025L30G absolute maximum ratings: (1)Terminal Voltage with Respect to GND:-0.5 to +7.0 V; (2)Temperature Under Bias:-55 to +125℃; (3)Storage Temperature: -55 to +125℃; (4)DC Output Current: 50 mA.
Features
IDT7025L30G features: (1)IDT7025 easily expands data bus width to 32 bits or more using the Master/Slave select when cascading more than one device; (2)M/S = H for BUSY output flag on Master; (3)M/S = L for BUSY input on Slave; (4)Interrupt Flag; (5)On-chip port arbitration logic; (6)Full on-chip hardware support of semaphore signaling between ports; (7)Fully asynchronous operation from either port; (8)Battery backup operation—2V data retention; (9)TTL-compatible, single 5V (±10%) power supply; (10)Available in 84-pin PGA, Flatpack, PLCC, and 100-pin Thin Quad Flatpack; (11)Industrial temperature range (–40 to +85℃) is available for selected speeds.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IDT7025L30G |
|
IC SRAM 128KBIT 30NS 84PGA |
