Product Summary

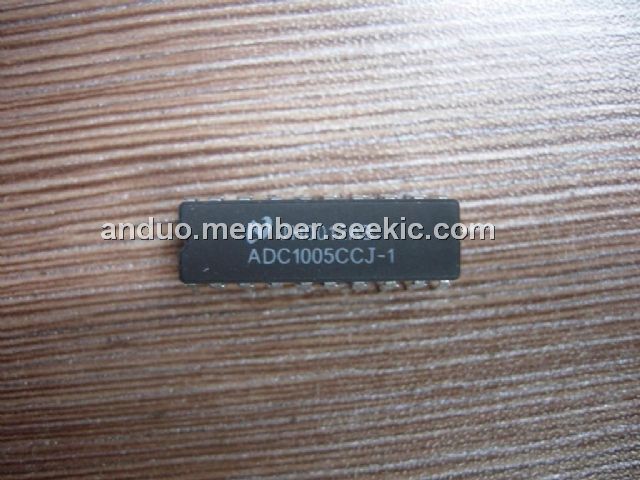

The ADC1005CCJ-1 is a CMOS 10-bit successive approximation A/D converter. The 20-pin ADC1005CCJ-1 outputs 10-bit data in a two-byte format for interface with 8-bit microprocessors. The ADC1005CCJ-1 has differential inputs to permit rejection of common-mode signals, allow the analog input range to be offset, and also to permit the conversion of signals not referred to ground.

Parametrics

ADC1005CCJ-1 absolute maximum ratings: (1)Supply Voltage (VCC): 6.5V; (2)Logic Control Inputs: -0.3V to +15V; (3)Voltage at Other Inputs and Outputs: -0.3V to VCC +0.3V; (4)Input Current Per Pin: ±5mA; (5)Input Current Per Package: ±20 mA; (6)Storage Temperature Range: -65℃ to +150℃; (7)Package Dissipation at TA=25℃: 875 mW.

Features

ADC1005CCJ-1 features: (1)Easy interface to all microprocessors; (2)Differential analog voltage inputs; (3)Operates ratiometrically or with 5 VDC voltage reference or analog span adjusted voltage reference; (4)0V to 5V analog input voltage range with single 5V supply; (5)On-chip clock generator; (6)TLL/MOS input/output compatible.

Diagrams

ADC1005CCJ-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADC1005CCJ-1
ADC1005CCJ-1

IC ADC 10BIT MPU COMPAT 20-CDIP
Data Sheet
Negotiable
