Product Summary
The AD390TD is a quad 12-bit microprocessor which contains four 12-bit high speed voltage-output digital-to-analog converters in a compact 28-pin hybrid package. The design is based on a propritary latched 12-bit DAc chip which reduces chip count and provides high reliability. The AD390TD is ideal for systems requiring digital control of many analog voltages where board space is at a premimum.
Parametrics
AD390TD absolute maximum ratings: (1)+VS to DGND: 0 to +18V; (2)-VS to DGND: 0 to -18V; (3)Digital inputs(pin 1-12, 23-28) to DGND: -1 to +7V; (4)Ref In to DGND: ±Vs; (5)AGND TO dgnd: ±0.6V; (6)Storage temperature: -65 to +150℃; (7)Lead temperature: (soldering, 10 seconds): +300℃.
Features
AD390TD features: (1)Four complete 12-bit DACs in one IC package; (2)Linearity error ±1/2LSB Tmin-Tmax; (3)Factory-trimmed gain and offset; (4)Buffered voltage output; (5)Monotonicity guarenteed over full temperature range; (6)Double-buffered data latches; (7)Includes reference and buffer; (8)Fast setting: 8μs max to ±1/2LSB.

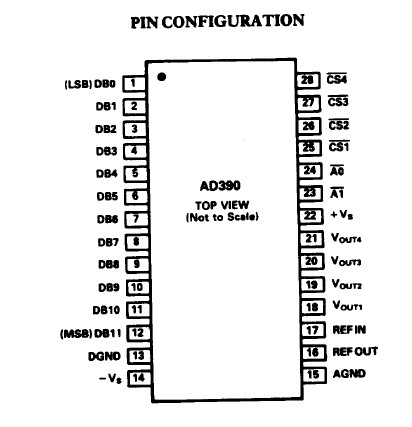

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

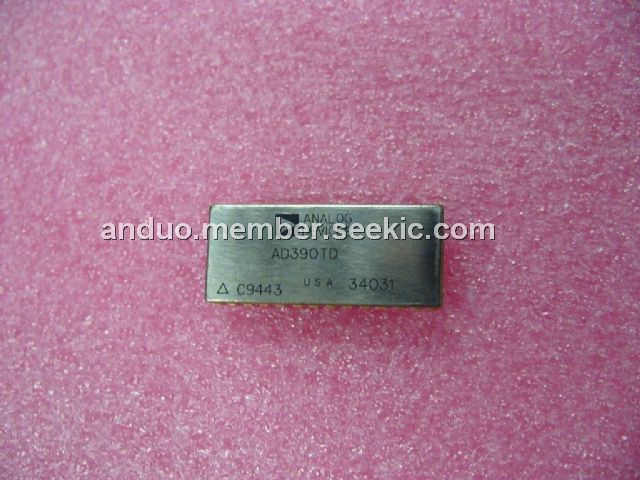

 AD390TD |
|
IC DAC QUAD 12BIT 28-CDIP |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
AD390JD |
|
IC DAC QUAD 12BIT 28-CDIP |
Data Sheet |
|
|
||||||
|
AD390KD |
|
IC DAC QUAD 12BIT 28-CDIP |
Data Sheet |
|
|
||||||
|
AD390SD |
|
IC DAC QUAD 12BIT 28-CDIP |
Data Sheet |
|
|
||||||
|
AD390TD |
|
IC DAC QUAD 12BIT 28-CDIP |
Data Sheet |
|
|
||||||
 |
AD394TD |
Analog Devices Inc |
IC DAC QUAD 12BIT 28-CDIP |
Data Sheet |
Negotiable |
|
||||||
