Product Summary

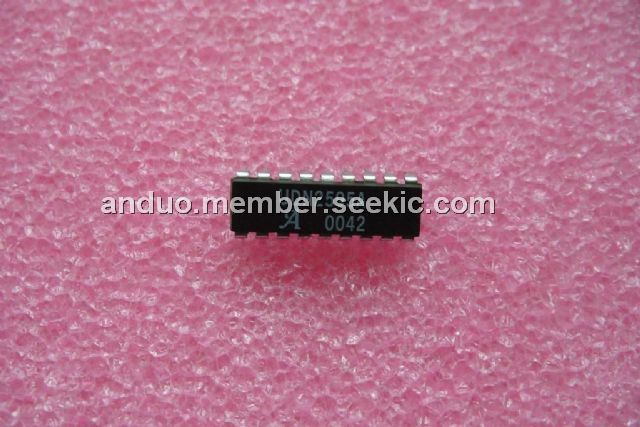

The UDN2595A is an 8-channel saturated sink driver. The UDN2595A is developed for use with low-voltage LED and incandescent display requiring low output saturation voltage, the UDN2595A meets many interface needs, including the exceeding the capabilities of standard logic buffers. The eight non-Darlington outputs of each driver can continuously and simultaneously sink load currents of 100 mA at ambient temperatures of up to +75℃.
Parametrics
UDN2595A absolute maximum ratings: (1)Output Voltage, VCE: 20 V; (2)Supply Voltage, VS: 20 V; (3)Input Voltage, VIN: 20 V; (4)Output Current, lC: 200 mA; (5)Ground Terminal Current, IGND: 1.6 A; (6)Operating Temperature Range, TA: -20℃ to +85℃; (7)Storage Temperature Range, TS: -55℃ to +150℃.
Features
UDN2595A features: (1)Non-Inverting Function(Input Low = Output ON); (2)200 mA Current Rating; (3)100 mA Continuous and Simultaneous (All outputs) to +85℃; (4)Low Saturation Voltage; (5)TTL, CMOS, NMOS Compatible; (6)Efficient Input/Output Pin Format; (7)DIP or SOIC Packaging.
