Product Summary

The AD558SD is a complete voltage-output 8-bit digital-to-analog converter. The AD558SD is including output amplifier, full microprocessor interface and precision voltage reference on a single monolithic chip. No external components or trims are required to interface, with full accuracy, an 8-bit data bus to an analog system. The performance and versatility of the AD558SD is a result of several recently-developed monolithic bipolar technologies. The complete microprocessor interface and control logic is implemented with integrated injection logic (I2L), an extremely dense and low power logic structure that is process-compatible with linear bipolar fabrication.

Parametrics

AD558SD absolute maximum ratings: (1)VCC to Ground: 0 V to +18 V; (2)Digital Inputs: 0 V to +7.0 V; (3)VOUT: Indefinite Short to Ground Momentary Short to VCC; (4)Power Dissipation: 450 mW; (5)Storage Temperature Range, N/P (Plastic) Packages: -25℃ to +100℃; D (Ceramic) Package: -55℃ to +150℃; (6)Lead Temperature (soldering, 10 sec): +300℃; (7)Thermal Resistance Junction to Ambient/Junction to Case, D (Ceramic) Package: 100℃/W/30℃/W; N/P (Plastic) Packages: 140℃/W/55℃/W.

Features

AD558SD features: (1)Complete 8-Bit DAC; (2)Voltage Output–2 Calibrated Ranges; (3)Internal Precision Bandgap Reference; (4)Single-Supply Operation: +5 V to +15 V; (5)Full Microprocessor Interface; (6)Fast: 1 ms Voltage Settling to 61/2 LSB; (7)Low Power: 75 mW; (8)No User Trims; (9)Guaranteed Monotonic Over Temperature; (10)All Errors Specified TMIN to TMAX; (11)Small 16-Pin DIP and 20-Pin PLCC Packages; (12)Single Laser-Wafer-Trimmed Chip for Hybrids; (13)Low Cost; (14)MIL-STD-883 Compliant Versions Available.

Diagrams

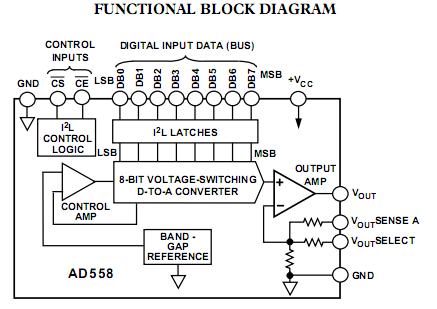

AD558SD block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

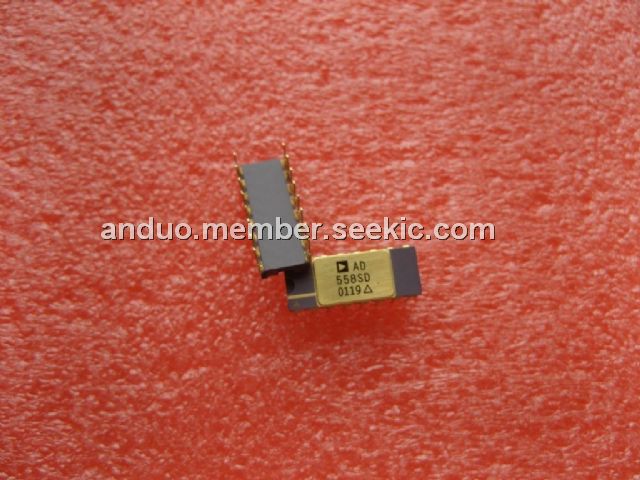

AD558SD
AD558SD


IC DAC 8BIT V-OUT 16-CDIP

Data Sheet

0-10: $21.82
