Product Summary

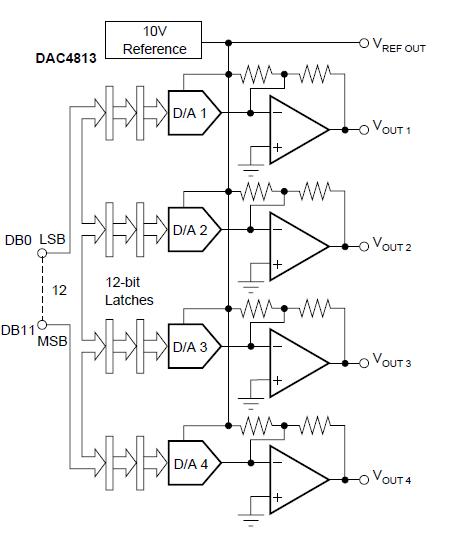

The DAC4813AP is a complete quad 12-bit digital-to-analog converter with bus interface logic. Each package includes a precision +10V voltage reference, doublebuffered bus interface including a RESET function and 12-bit D/A converters with voltage-output operational amplifiers.
Parametrics
Absolute maximum ratings: (1)+VCC to ACOM: 0 to +18V; (2)–VCC to ACOM: 0 to –18V; (3)+VCC to –VCC: 0 to +36V; (4)ACOM to DCOM: ±4V; (5)Digital Inputs to DCOM: –1V to +VCC; (6)External Voltage applied to BPO Resistor: ±18V; (7)VREF OUT: Indefinite short to ACOM; (8)VOUT: Momentary to ±18V; (9)Lead Temperature, soldering 10s: +300℃; (10)Max Junction Temperature: 165℃.
Features
Features: (1)complete with reference and output amplifiers; (2)12-bit port interface; (3)nalog output range: ±10v; (4)monotonicity guaranteed over temperature; (5)integral linearity error: ±1/2lsb max; (6)±12v to ±15v supplies; (7)28-pin plastic dip package.
