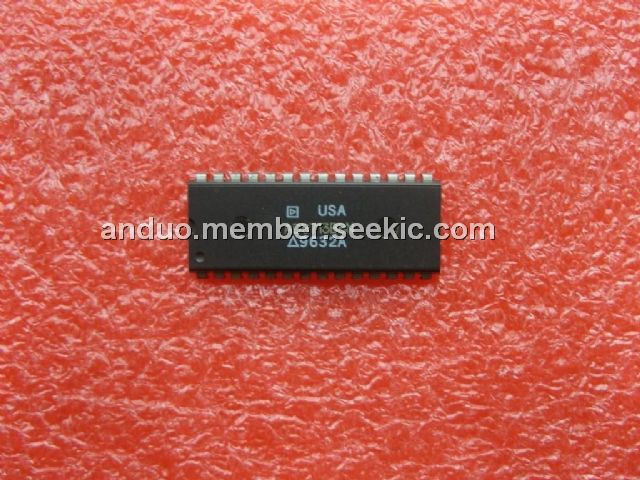

Product Summary

The AD9713BBN is a 12-Bit, 100 MSPS D/A Converter. The applications of the AD9713BBN are ATE, Signal Reconstruction, Arbitrary Waveform Generators, Digital Synthesizers, Signal Generators.

Parametrics

AD9713BBN absolute maximum ratings: (1)Internal Reference Output Current:500 μA; (2)Control Amplifier Input Voltage Range:0 V to –4 V; (3)Control Amplifier Output Current:±2.5 mA; (4)Reference Input Voltage Range (VREF):0 V to –VS; (5)Analog Output Current:30 mA; (6)Operating Temperature Range:–25°C to +85°C; (7)Maximum Junction Temperature:+150°C; (8)Lead Temperature (Soldering, 10 sec):+300°C; (9)Storage Temperature Range:–65°C to +150°C.

Features

AD9713BBN features: (1)100 MSPS Update Rate; (2)ECL/TTL Compatibility; (3)SFDR @ 1 MHz: 70 dBc; (4)Low Glitch Impulse: 28 pV-s; (5)Fast Settling: 27 ns; (6)Low Power: 725 mW; (7)1/2 LSB DNL (B Grade); (8)40 MHz Multiplying Bandwidth.

Diagrams

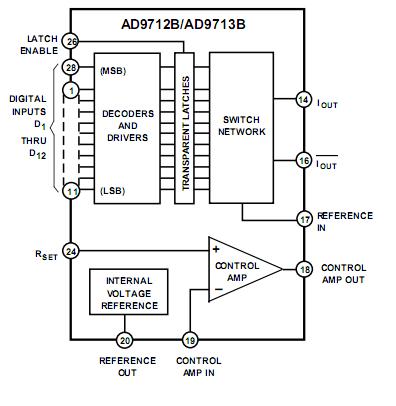

AD9713BBN block diagram
