Product Summary
The AD2700JD is a precision 10V reference. It offers the user excellent accuracy and stability at a moderate price by combining the recognized advantages of thin film technology and active laser trimming. The AD2700JD is a negative 10V reference especially designed to interface with CMOS D/A and A/D converters, as shown in the applications.
Parametrics
AD2700JD absolute maximum ratings: (1)input voltage:±20V; (2)power dissipation:300mW; (3)operating temperature range:-25 to +85℃; (4)storage temperature range:-65 to +150℃; (5)lead temperature:+300℃.
Features
AD2700JD features: (1)very high accuracy:10000V±2.5mV; (2)low temperature coefficient:3ppm/℃; (3)performance guaranteed:-55 to +125℃; (4)10mA output current capability; (5)low noise; (6)short circuit protected.

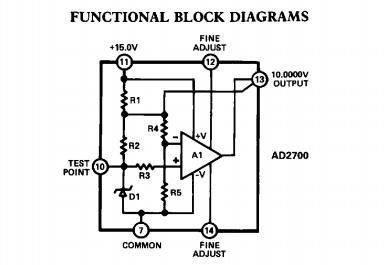

Diagrams
 |
