DS1691AJ/883

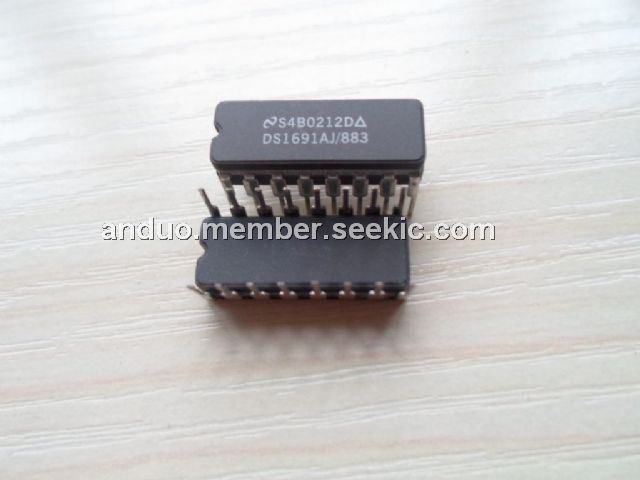

DS1691AJ/883, National Semiconductor, DIP, driver, 7V, 1.07W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.43~6.29 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.43~6.29

PartNumber:: DS1691AJ/883

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Anna's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-13

From Other Seller

Part Number:DS1691AJ/883
US $5.43 - 6.29
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

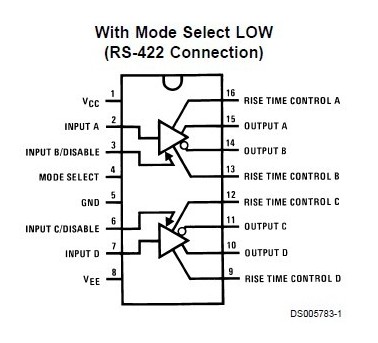

The DS1691AJ/883 is a low power Schottky TTL line driver designed to meet the requirements of EIA standards RS-422 and RS-423. DS1691AJ/883 features 4 buffered outputs with high source and sink current capability with internal short circuit protection. A mode control input provides a choice of operation either as 4 single-ended line drivers or 2 differential line drivers. A rise time control pin allows the use of an external capacitor to slow the rise time for suppression of near end crosstalk to other receivers in the cable. Rise time capacitors are primarily intended for waveshaping output signals in the single-ended driver mode. Multipoint applications in differential mode with waveshaping capacitors is not allowed. With the mode select pin low, the DS1691AJ/883 is a dual-differential line driver with TRI-STATE outputs. DS1691AJ/883 features ±10V output common-mode range in TRI-STATE mode and 0V output unbalance when operated with ±5V supply.

Parametrics

DS1691AJ/883 absolute maximum ratings: (1)Supply Voltage, VCC: 7V; (2)Control Input Voltages: 7V; (3)Driver Input Voltage: 7V; (4)Driver Output Voltages: +15V/-10V; (5)Receiver Input Voltages: +15V/-10V; (6)Receiver Output Voltage: 5.5V; (7)Continuous Power Dissipation @ 25℃ N Package: 1.07W; (8)Storage Temperature Range: -65 to +150℃; (9)Lead Temperature (Soldering, 4sec.): 260℃.

Features

DS1691AJ/883 absolute maximum ratings: (1)Supply Voltage, VCC: 7V; (2)VEE: -7V; (3)Input Voltage: 15V; (4)Output Voltages: +15V/-15V; (5)Receiver Input Voltages: +15V/-10V; (6)maximum Power Dissipation @ 25℃ N Package: 1476W; (7)Storage Temperature Range: -65 to +150℃; (8)Lead Temperature (Soldering, 4sec.): 260℃.
