Product Summary
The ADSP-2111TG-40 is a DSP Microcomputer. It optimized for digital signal processing (DSP) and other high speed numeric processing applications.
Parametrics
Absolute maximum ratings: (1)Supply Voltage:–0.3 V to +7 V; (2)Input Voltage:–0.3 V to VDD + 0.3 V; (3)Output Voltage Swing:–0.3 V to VDD + 0.3 V; (4)Operating Temperature Range (Ambient):–55℃ to +125℃; (5)Storage Temperature Range:–65℃ to +150℃; (6)Lead Temperature (10 sec) PGA:+300℃.
Features
Features: (1)25 MIPS, 40 ns Maximum Instruction Rate; (2)Separate On-Chip Buses for Program and Data Memory; (3)Program Memory Stores Both Instructions and Data(Three-Bus Performance); (4)Dual Data Address Generators with Modulo and Bit-Reverse Addressing; (5)Efficient Program Sequencing with Zero-Overhead Looping: Single-Cycle Loop Setup; (6)Automatic Booting of On-Chip Program Memory from Byte-Wide External Memory (e.g., EPROM ); (7)Double-Buffered Serial Ports with Companding Hardware, Automatic Data Buffering, and Multichannel Operation; (8)ADSP-2111 Host Interface Port Provides Easy Interface to 68000, 80C51, ADSP-21xx, Etc.; (9)Automatic Booting of ADSP-2111 Program Memory Through Host Interface Port; (10)Three Edge- or Level-Sensitive Interrupts; (11)Low Power IDLE Instruction; (12)PGA, PLCC, PQFP, and TQFP Packages; (13)MIL-STD-883B Versions Available.

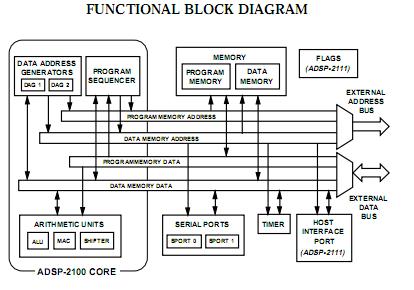

Diagrams
 |
