Product Summary
The CS5520-BP is a monolithic CMOS A/D converter. It includes an instrumentation amplifier input, an on-chip programmable gain amplifier, and a DAC for offset trimming. And it is used for general purpose low-level signal measurement.
Parametrics
Absolute maximum ratings: (1)Input Current, Any Pin Except Supplies: lin: ±10mA max; (2)Analog Input Voltage AIN and VREF pins: VINA: (VA-)-0.3 to(VA+)+0.3V; (3)Digital Input Voltage, VIND: -0.3 to (VD+)+0.3V; (4)Ambient Operating Temperature, TA: -55 to 125℃; (5)Storage Temperature, Tstg: -65 - 150℃.
Features
Features: (1)On-chip Instrumentation Amplifier; (2)On-chip Programmable Gain Amplifier; (3)On-Chip 4-Bit D/A For Offset Removal; (4)Dynamic Excitation Options; (5)Linearity Error: ±0.0015% FS: 20-Bit No Missing Codes; (6)CMRR at 50/60 Hz > 200 dB; (7)System Calibration Capability with calibration read/write option; (8)3, 4 or 5 wire Serial Communications Port; (9)Low Power Consumption: 40 mW: 10 μW Standby Mode for Portable applications.

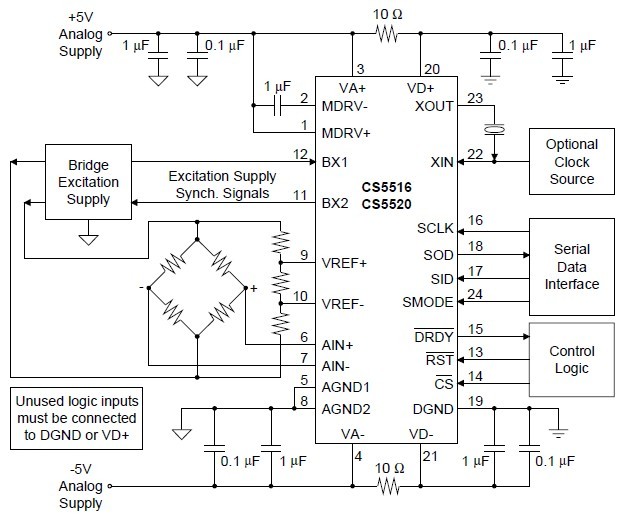

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS5520-BP |
Cirrus Logic |
ADC (A/D Converters) 20-Bit Bridge Transducer ADC |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
CS5501 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
CS5503 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
CS5504 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
CS5505 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
CS5505/6/7/8 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
CS5505-ASZ |
Cirrus Logic |
ADC (A/D Converters) IC 16-Bit 4-Ch ADC |
Data Sheet |
|
|
||||||||||||
