Product Summary

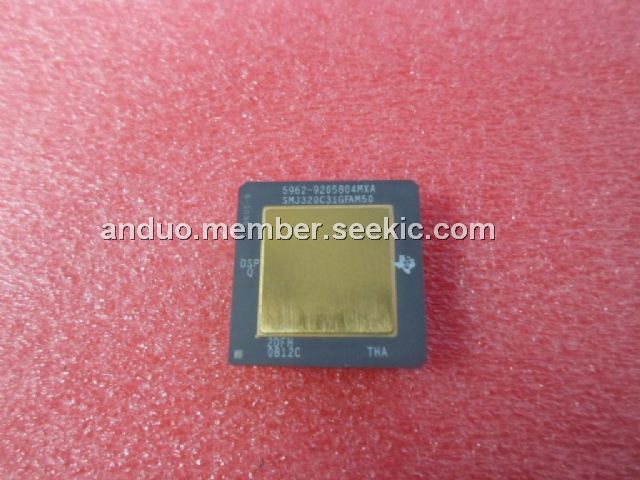

The SMJ320C31GFAM50 digital signal processor (DSP) is 32-bit, floating-point processors manufactured in 0.6-μm triple-level-metal CMOS technology. The SMJ320C31GFAM50 is part of the SMJ320C3x generation of DSPs from Texas Instruments. General-purpose applications are greatly enhanced by the large address space, multiprocessor interface, internally and externally generated wait states, one external interface port, two timers, one serial port, and multiple-interrupt structure. The SMJ320C31GFAM50 supports a wide variety of system applications from host processor to dedicated coprocessor. High-level-language support is easily implemented through a register-based architecture, large address space, powerful addressing modes, flexible instruction set, and well-supported floating-point arithmetic.
Parametrics
SMJ320C31GFAM50 absolute maximum ratings: (1)Supply voltage, VDD: −0.3 V to 7 V; (2)Input voltage, VI: −0.3 V to 7 V; (3)Output voltage, VO: −0.3 V to 7 V Continuous power dissipation (worst case): 1.7 W; (4)Operating case temperature, TC: −55°C to 125°C; (5)Storage temperature, Tstg: − 65°C to 150°C; (6)IOL Low-level output current: 2 mA.
Features
SMJ320C31GFAM50 features: (1)Fabricated Using Enhanced Performance Implanted CMOS (EPIC)Technology by Texas Instruments (TI); (2)Two- and Three-Operand Instructions; (3)40 / 32-Bit Floating-Point / Integer Multiplier and Arithmetic Logic Unit (ALU); (4)Parallel ALU and Multiplier Execution in a Single Cycle; (5)Block-Repeat Capability; (6)Zero-Overhead Loops With Single-Cycle Branches; (7)Conditional Calls and Returns; (8)Interlocked Instructions for Multiprocessing Support; (9)Bus-Control Registers Configure Strobe-Control Wait-State Generation; (10)Validated Ada Compiler; (11)Integer, Floating-Point, and Logical Operations; (12)32-Bit Barrel Shifter.
Diagrams
 |
