Product Summary

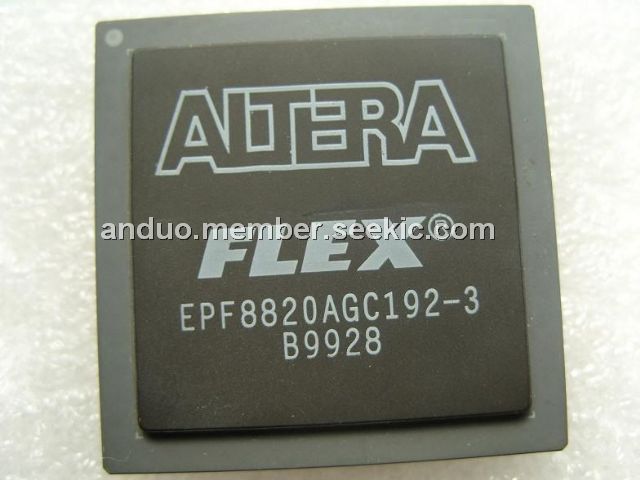

The EPF8820AGC192-3 is a programmable logic device.
Parametrics
EPF8820AGC192-3 absolute maximum ratings: (1)Supply voltage: –2.0 to 7.0 V; (2)DC input voltage: –2.0 to 7.0 V; (3)DC output current, per pin: –25 to 25 mA; (4)Storage temperature No bias: –65 to 150℃; (5)TAMB Ambient temperature Under bias: –65 to 135℃; (6)Junction temperature: Ceramic packages, under bias, 150℃; PQFP and RQFP, under bias 135℃.
Features
EPF8820AGC192-3 features: (1)Low-cost, high-density, register-rich CMOS programmable logic ; (2)device (PLD) family; (3)System-level features: In-circuit reconfigurability (ICR) via external Configuration EPROM or intelligent controller; Fully compliant with the peripheral component interconnect ; (4)(PCI) standard; (5)Flexible interconnect; (6)Powerful I/O pins: Programmable output slew-rate control reduces switching noise; (7)Peripheral register for fast setup and clock-to-output delay.

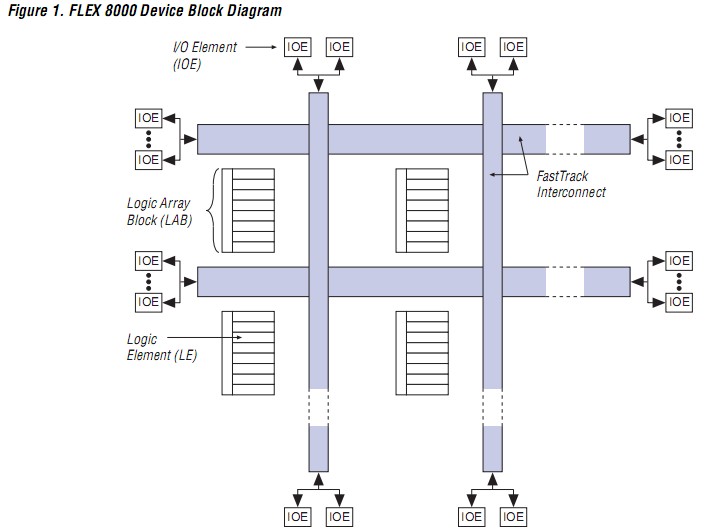

Diagrams
 |
