Product Summary

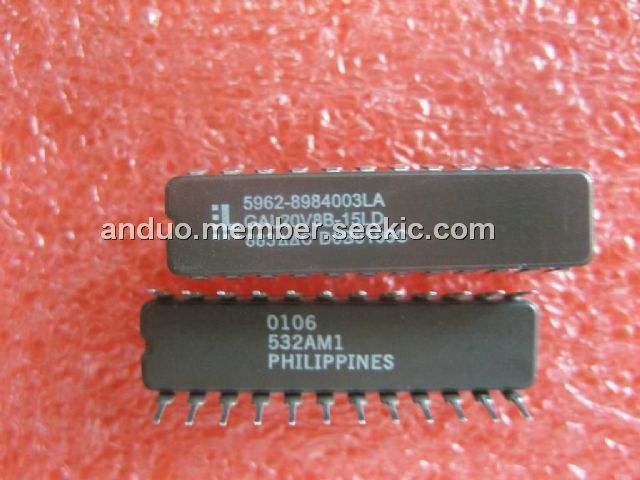

The GAL20V8B-15LD is a high performance E2CMOS PLD generic array logic. The GAL20V8B-15LD at 5ns maximum propagation delay time, combines a high performance CMOS process with Electrically Erasable (E2) floating gate technology to provide the highest speed performance available in the PLD market. High speed erase times (<100ms) allow the devices to be reprogrammed quickly and efficiently. The generic architecture of the GAL20V8B-15LD provides maximum design flexibility by allowing the Output Logic Macrocell (OLMC) to be configured by the user. An important subset of the many architecture configurations possible with the GAL20V8B are the PAL architectures listed in the table of the macrocell description section.
Parametrics
GAL20V8B-15LD absolute maximum ratings: (1)Supply voltage VCC: –0.5 to +7V; (2)Input voltage applied: –2.5 to VCC +1.0V; (3)Off-state output voltage applied: –2.5 to VCC +1.0V; (4)Storage Temperature: –65 to 150℃; (5)Ambient Temperature with Power Applied: –55 to 125℃.
Features
GAL20V8B-15LD features: (1)E2 cell technology; (2)Reconfigurable Logic; (3)Reprogrammable Cells; (4)100% Tested/100% Yields; (5)High Speed Electrical Erasure (<100ms); (6)20 Year Data Retention; (7)EIGHT OUTPUT LOGIC MACROCELLS; (8)Maximum Flexibility for Complex Logic Designs; (9)Programmable Output Polarity; (10)Also Emulates 24-pin PALDevices with Full Function/Fuse Map/Parametric Compatibility; (11)PRELOAD AND POWER-ON RESET OF ALL REGISTERS 100% Functional Testability.

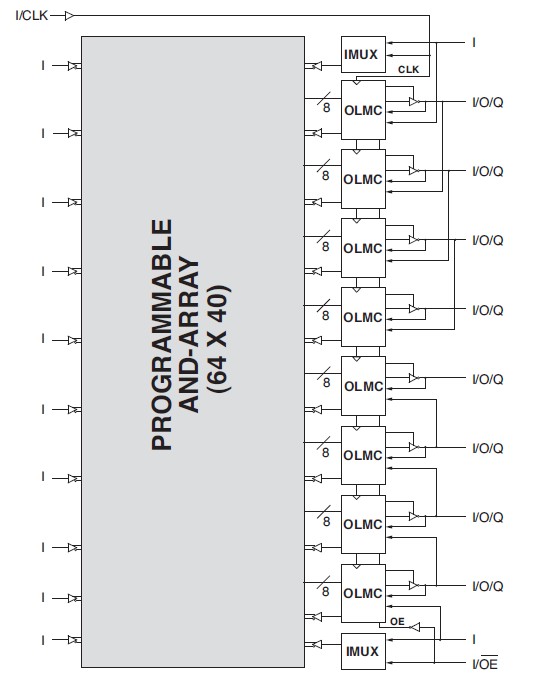

Diagrams
 |
