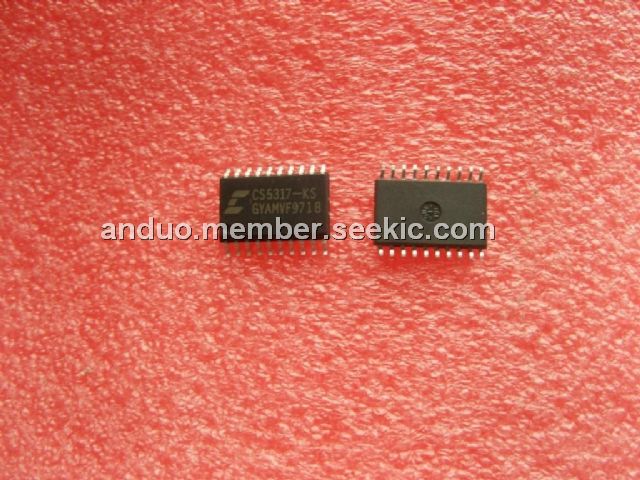

The CS5317KS is a 16-Bit, 20 kHz Oversampling A/D Converter. The CS5317KS is an ideal analog front-end for voiceband signal processing applications such as high-performance modems, passive sonar, and voice recognition systems. It includes a 16-bit A/D converter with an internal track & hold amplifier, a voltage reference, and a linear-phase digital filter. An on-chip phase-lock loop (PLL) circuit simplifies the CS5317KS use in applications where the output word rate must be locked to an external sampling signal.
Parametrics
CS5317KS absolute maximum ratings: (1)DC Power Supplies: Positive Digital: 0.3 to 6.0 V; (2)Input Current, Any Pin Except Supplies: ±10 mA; (3)Analog Input Voltage (AIN and VREF pins)VINA: (VA-)- 0.3 (VA+)+ 0.3 V; (4)Digital Input Voltage VIND: -0.3 to (VD+)+ 0.3 V; (5)Ambient Operating Temperature TA: -55 to 125 ℃; (6)Storage Temperature Tstg: -65 to 150 ℃; (7)Master Clock Frequency fclk: 0.01 to 5.12 MHz.
Features
CS5317KS features: (1)lComplete Voiceband DSP Front-End 16-Bit A/D Converter, Internal Track & Hold Amplifier, On-Chip Voltage Reference, Linear-Phase Digital Filter; (2)lOn-Chip PLL for Simplified Output Phase; (3)Locking in Modem Applications; (4)l84 dB Dynamic Range; (5)l80 dB Total Harmonic Distortion; (6)lOutput Word Rates up to 20 kHz; (7)lDSP-Compatible Serial Interface; (8)lLow Power Dissipation: 220 mW.
