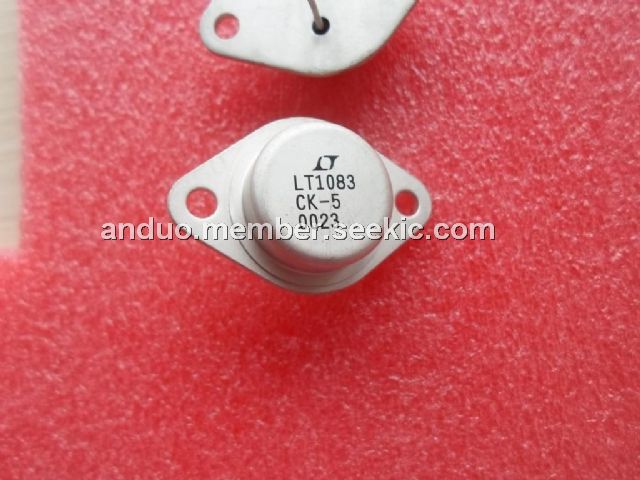

LT1083CK-5

positive adjustable regulator, 30V, 7.5A, CAN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.80~5.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.80~5.60

PartNumber:: LT1083CK-5

Brand:: Linear Technology - Linear | Pack: CAN | D/C: 00+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Anna's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-07

From Other Seller

Part Number:LT1083CK-5
US $4.80 - 5.60
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LT1083CK-5 is a positive adjustable regulator. The LT1083CK-5 is designed to provide 3A, 5A and 7.5A with higher efficiency than currently available devices. All internal circuitry is designed to operate down to 1V input to output differential and the dropout voltage is fully specified as a function of load current. Dropout is guaranteed at a maximum of 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the output voltage to 1%. Current limit of the LT1083CK-5 is also trimmed, minimizing the stress on both the regulator and power source circuitry under overload conditions.

Parametrics

LT1083CK-5 absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Input Voltage: 30V; (3)Operating Input Voltage 3.3V, 3.6V Devices: 20V, 5V Devices: 20V, 12V Devices: 25V; (4)Operating Junction Temperature Range Control Section : 0℃ to 125℃, Power Transistor : 0℃ to 150℃; (5)Storage Temperature Range:–65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1083CK-5 features: (1)Three-Terminal 3.3V, 3.6V, 5V and 12V; (2)Output Current of 3A, 5A or 7.5A; (3)Operates Dowto 1V Dropout; (4)Guaranteed Dropout Voltage at Multiple Current Levels; (5)Line Regulation: 0.015%; (6)Load Regulation: 0.1%; (7)100% Thermal Limit Functional Test; (8)Adjustable Versions Available.
