Product Summary

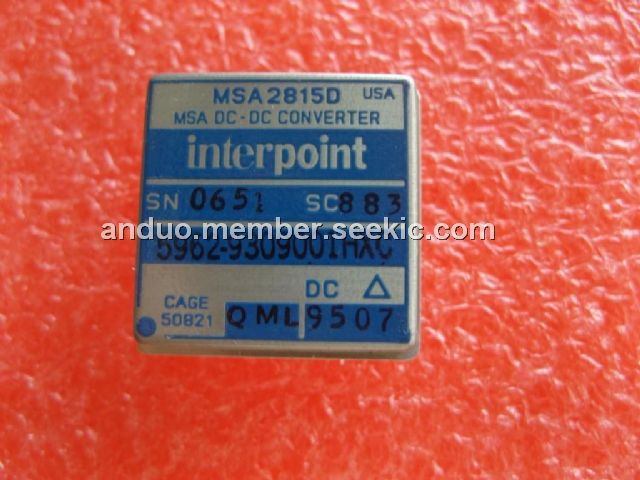

The MSA2815D is a dc/dc converter. The MSA2815D offers a new standard of performance for low power, military/aerospace grade DC/DC converters. The MSA2815D provides up to 5 watts output power over the full military temperature range with up to 76% efficiency. Thick-film hybrid techniques provide military/aerospace reliability levels and optimum miniaturization.
Parametrics
MSA2815D absolute maximum ratings: (1)Input Voltage:16 to 40 V; (2)Output Power:5 watts ; (3)Lead Soldering Temperature (10 sec per lead):300°C; (4)Storage Temperature Range (Case):–65°C to +135°C.
Features
MSA2815D features: (1)–55 to +125°C operation; (2)16 to 40 VDC input; (3)Fully isolated; (4)Optocoupler feedback; (5)Fixed frequency, 550 kHz typical(400 kHz typ. 60 V output model); (6)Topology – Flyback; (7)50 V for up to 50 ms transient protection; (8)Inhibit function; (9)Indefinite short circuit protection; (10)Up to 76% efficiency, 16 W/in3.
