Product Summary

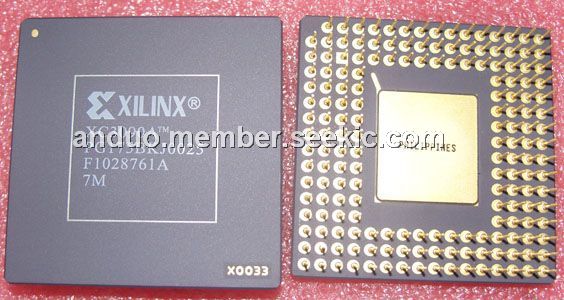

The XC3090A-7PG175M Field Programmable Gate Array (FPGA) provides a group of high-performance, high-density, digital integrated circuits. Its regular, extendable, flexible, user-programmable array architecture is composed of a configuration program store plus three types of configurable elements: a perimeter of I/O Blocks (IOBs), a core array of Configurable Logic Bocks (CLBs) and resources for interconnection.
Parametrics
Absolute maximum ratings: (1)High-level output voltage (@ IOH = –4.0 mA, VCC min): 3.86 V; (2)VOL Low-level output voltage (@ IOL = 4.0 mA, VCC min): 0.40 V; (3)VOH High-level output voltage (@ IOH = –4.0 mA, VCC min): 3.76 V; (4)VOL Low-level output voltage (@ IOL = 4.0 mA, VCC min): 0.40 V; (5)VCCPD Power-down supply voltage (PWRDWN must be Low): 2.30 V; (6)ICCPD Power-down supply current (VCC(MAX) @ TMAX): 500 μA.
Features
Features: (1)Ideal for a wide range of custom VLSI design tasks; (2)High-performance CMOS static memory technology; (3)Flexible FPGA architecture; (4)Unlimited reprogrammability; (5)Extensive packaging options; (6)Ready for volume production; (7)Complete Development System.

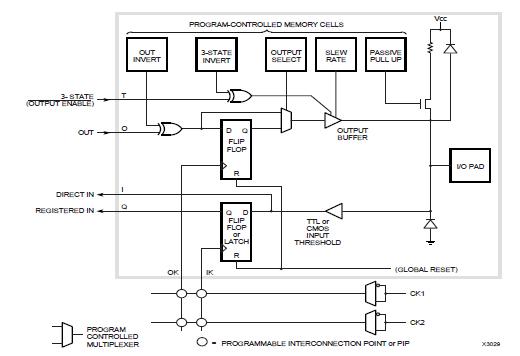

Diagrams
 |
