Product Summary
The PA82J is a high voltage operation amplifier. It provides an extremely wide range of supply capability with two overlapping products. High accuracy is achieved with a cascode input circuit configuration. All internal biasing is referenced to a zener diode. As a result, The PA82J offers outstanding common mode and power supply rejection. The output stage operates in the class A/B mode for best linearity. The applications of the PA82J include: (1)high impedance buffers up to ±140v; (2)electrostatic transducer & deflection; (3)programmable power supplies to ±145v; (4)biochemistry stimulators; (5)computer to vacuum tube interface.
Parametrics
PA82J absolute maximum ratings: (1)SUPPLY VOLTAGE, +VS to –VS: 300V; (2)OUTPUT CURRENT, within SOA: Internally Limited; (3)POWER DISSIPATION, internal: 11.5W; (4)INPUT VOLTAGE, differential: ±300V; (5)INPUT VOLTAGE, common mode: ±VS; (6)TEMPERATURE, pin solder - 10 sec: 300℃; (7)TEMPERATURE, junction: 150℃; (8)TEMPERATURE RANGE, storage: –65 to +125℃; (9)OPERATING TEMPERATURE RANGE, case: –55 to +125℃.
Features
PA82J features: (1)high voltage operation: ±50v; (2)low bias current, low noise: fet input.

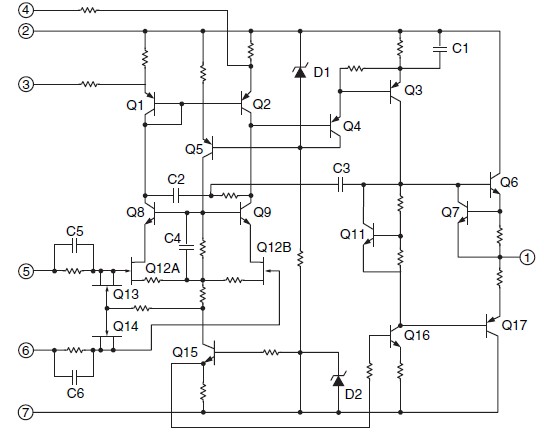

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PA82J |
Cirrus Logic |
Operational Amplifiers - Op Amps Linear Op-Amp 150V .03A .015A |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
PA82J |
Cirrus Logic |
Operational Amplifiers - Op Amps Linear Op-Amp 150V .03A .015A |
Data Sheet |
Negotiable |
|
||||
