Product Summary

The AD1170 is a high resolution, programmable integrating A/D converter. The applications of AD1170 are data acquisition systems, scientifie instruments, medical instruments, weighing systems, automatic test equipment.

Parametrics

AD1170 absolute maximum ratings: (1)analog input range:-5 to +5V; (2)input bias current:10nA; (3)input impedance:100mΩ; (4)output voltage:5Vdc; (5)output current:2mA; (6)rated performance temperature range:0 to +70℃; (7)storage temperature:-25 to +85℃.

Features

AD1170 features: (1)low nonlinearity; (2)microcomputer-based design programmable integration time:1 to 350ms with resolution from 7 to 18bits; (3)programmable output data format; (4)auto-zeroed operation and electronic calibration; (5)microprocessor compatible interface; (6)high throughput.

Diagrams

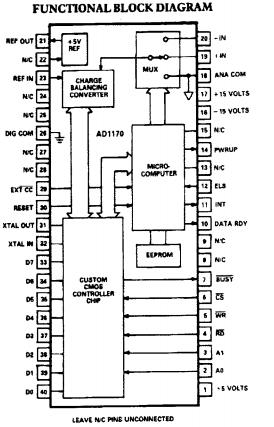

AD1170 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

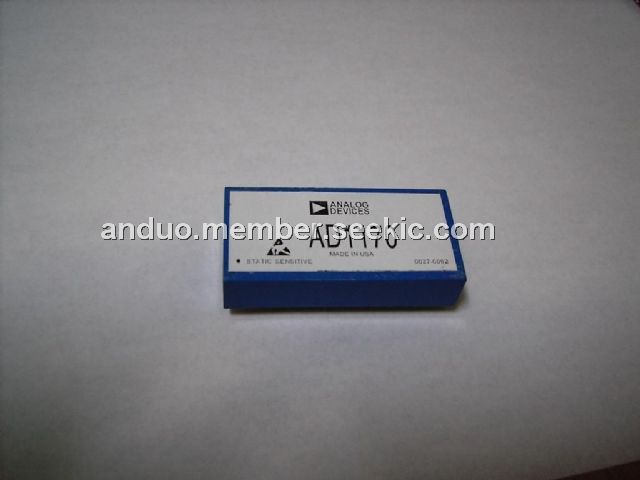

AD1170
AD1170
Analog Devices Inc
IC ADC PROGRAMMABLE 40DIP 18BITS
Data Sheet
Negotiable
