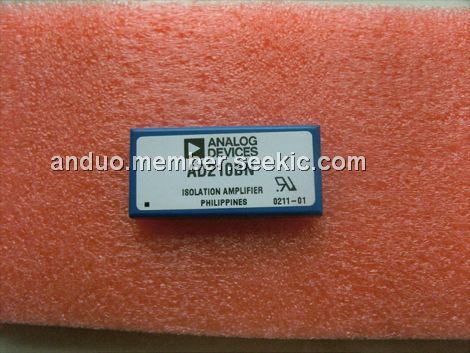

AD210BN

Precision, Wide Bandwidth, 3-Port Isolation Amplifier, DIP, Low Gain Drift 625 ppm/8C, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $23.19~24.73 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $23.19~24.73

PartNumber:: AD210BN

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Anna's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-11

From Other Seller

Part Number:AD210BN
US $23.19 - 24.73
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

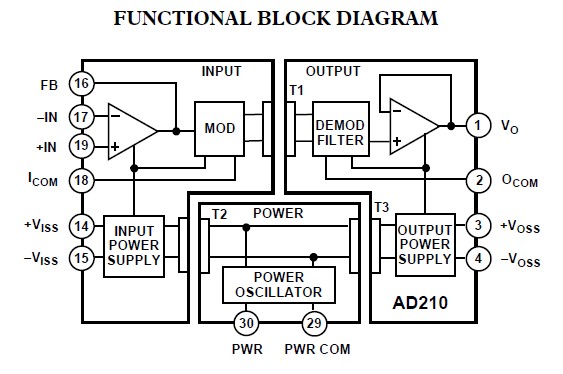

The AD210BN is the latest member of a new generation of low cost, high performance isolation amplifiers. This three-port, wide bandwidth isolation amplifier is manufactured with surface-mounted components in an automated assembly process. The AD210BN combines design expertise with state-of-the-art manufacturing technology to produce an extremely compact and economical isolator whose performance and abundant user features far exceed those offered in more expensive devices. The AD210BN provides a complete isolation function with both signal and power isolation supplied via transformer coupling internal to the module. The AD210BN functionally complete design, powered by a single +15 V supply, eliminates the need for an external DC/DC converter, unlike optically coupled isolation devices. The true three-port design structure permits the AD210BN to be applied as an input or output isolator, in single or multichannel applications. The AD210BN will maintain its high performance under sustained common-mode stress.

Parametrics

AD210BN maximum ratings: (1)Number of Pins: 30; (2)Isolation Voltage: 2.50 kV; (3)Slew Rate: 1.00 V/μs; (4)Supply Current: 50.0 mA; (5)Supply Voltage (DC): 5.00 V; (6)Mounting Type: Through Hole; (7)Packaging: Tube; (8)RoHS: Non-Compliant.

Features

AD210BN features: (1)High CMV Isolation: 2500 V rms Continuous. 63500 V Peak Continuous; (2)Small Size: 1.00" 3 2.10" 3 0.350"; (3)Three-Port Isolation: Input, Output, and Power; (4)Low Nonlinearity: 60.012% max; (5)Wide Bandwidth: 20 kHz Full-Power (–3 dB); (6)Low Gain Drift: 625 ppm/8C max; (7)High CMR: 120 dB (G = 100 V/V); (8)Isolated Power: 615 V @ 65 mA; (9)Uncommitted Input Amplifier.
