Product Summary
The AD2S82AJP is a monolithic 10-, 12-, 14-, or 16-bit tracking resolver-to-digital converter contained in a 40-lead DIP or 44-terminal LCC ceramic package. The AD2S82AJP is manufactured on a BiMOS II process that combines the advantages of CMOS logic and bipolar high accuracy linear circuits on the same chip. The applications of the AD2S82AJP are DC Brushless and AC Motor Control, Process Control, Numerical Control of Machine Tools, Robotics, Axis Control, Military Servo Control.
Parametrics
AD2S82AJP absolute maximum ratings: (1)+VS:+14 V dc; (2)–VS:–14 V dc; (3)+VL:VS; (4)Reference:14 V to –VS; (5)SIN :14 V to –VS; (6)COS:14 V to –VS; (7)Any Logical Input:–0.4 V dc to +VL dc; (8)Demodulator Input:14 V to –VS; (9)Integrator Input:14 V to –VS; (10)VCO Input:14 V to –VS; (11)Power Dissipation:860 mW; (12)Operating Temperature: Commercial (JD, KD, LD):0℃ to 70℃, Industrial (AD, BD):–40℃ to +85℃, Extended (SD, SE, TD, TE, UD, UE):–55℃ to +125℃; (13)Storage Temperature (All Grades):–65℃ to +150℃; (14)Lead Temperature (Soldering, 10 sec):300℃.
Features
AD2S82AJP features: (1)Monolithic (BiMOS ll) Tracking R/D Converter; (2)40-Lead DIP Package; (3)44-Terminal LCC Package; (4)10-,12-,14-, and 16-Bit Resolution Set by User; (5)Ratiometric Conversion; (6)Low Power Consumption: 300 mW Typ; (7)Dynamic Performance Set by User; (8)High Max Tracking Rate 1040 RPS (10 Bits); (9)Velocity Output; (10)Industrial Temperature Range Versions; (11)Military Temperature Range Versions; (12)ESD Class 2 Protection (2,000 V Min); (13)/883 B Parts Available.

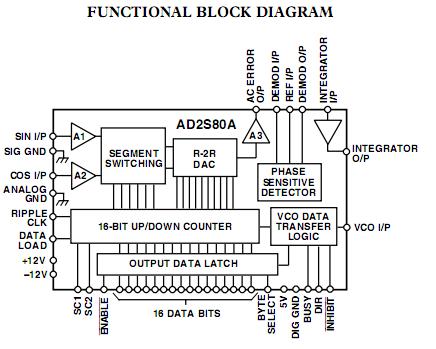

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

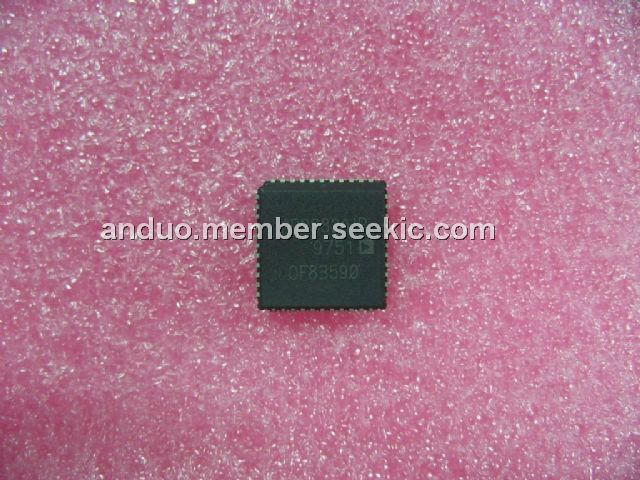

 AD2S82AJP |
|
IC R/D CONV TRACKING 44-PLCC |
Data Sheet |
|
|
||||||||||
|
AD2S82AJPZ |
|
IC R/D CONV TRACKING 44-PLCC |
Data Sheet |
|
|
||||||||||
