Product Summary

The MHF+2805S is a high frequency DC/DC converter. The MHF+2805S offers a wide input voltage range of 16 to 40 volts and up to 15 watts of output power. The units are capable of withstanding short term transients up to 50 volts. The package is a hermetically sealed, welded metal case. Flanged and non-flanged models are available.

Parametrics

MHF+2805S electrical charactersitics: (1)output voltage: 4.95 to 5.05V; (2)output current: 0 to 1.5V; (3)output power: 7.5W; (4)output ripple voltage: 20 to 60mV p*p.

Features

MHF+2805S features: (1)–55 to +125°C operation; (2)16 to 40 VDC input (16 to 48 VDC triple); (3)Fully isolated; (4)Optocoupler feedback; (5)Fixed frequency 550 kHz typical:450 kHz triple models Topology; (6)Single and dual: Single Ended Forward; (7)Triple: Current Mode Flyback Transient protection; (8)Single and dual: 50 V/50 ms; (9)Triple: 80 V/120 ms; (10)Inhibit and sync functions; (11)Indefinite short circuit protection; (12)Undervoltage lockout; (13)Up to 84% efficiency, 28 W/in3; (14)Up to 76% efficiency triple models.

Diagrams

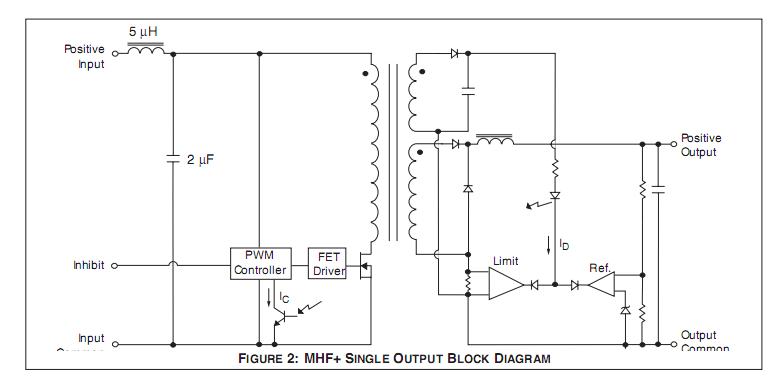

MHF+2805S block diagram

MHF+ 15 Watts
MHF+ 15 Watts
Other

Data Sheet
Negotiable
