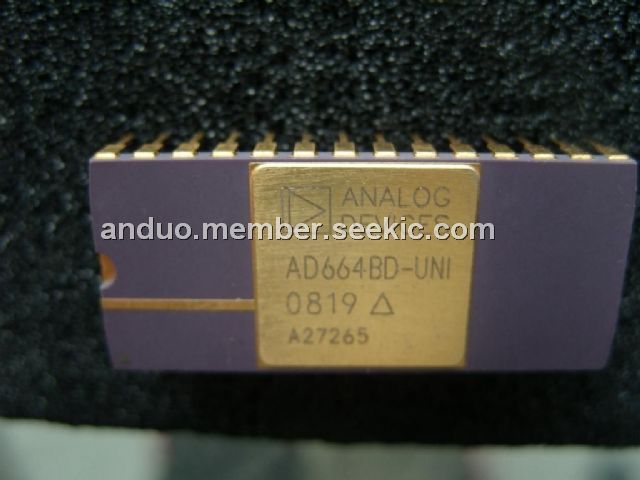

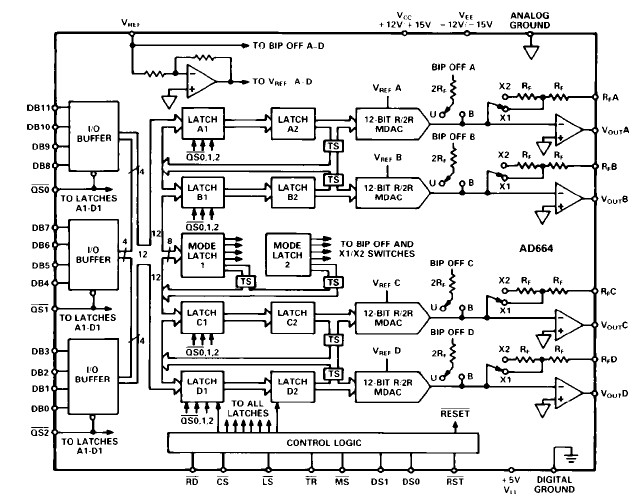

The AD664BD-UNI is a Monolithic 12-Bit Quad DAC. Each DAC has a double-buffered input latch structure and a data readback function. All DAC read and write operations occur through a single microprocessor-compatible I/O port. The analog portion of the AD664BD-UNI consists of four DAC cells, four output amplifiers, a control amplifier and switches. Each DAC cell is an inverting R-2R type. The applications of the AD664BD-UNI include Automatic Test Equipment, Robotics, Process Control, Disk Drives, Instrumentation, Avionics.
Parametrics
AD664BD-UNI absolute maximum ratings: (1)VLL to DGND: 0 V to +7 V; (2)VCC to DGND: 0 V to +18 V; (3)VEE to DGND: –18 V to 0 V; (4)Soldering: +300℃, 10 sec; (5)Power Dissipation: 1000 mW; (6)AGND to DGND: –1 V to +1 V; (7)Reference Input: VREF ≤ ±10 V and VREF ≤ (VCC – 2 V, VEE + 2 V); (8)VCC to VEE: 0 to +36 V; (9)Digital Inputs: –0.3 V to +7 V.
Features
AD664BD-UNI features: (1)Four Complete Voltage Output DACs; (2)Data Register Readback Feature; (3)“Reset to Zero” Override; (4)Multiplying Operation; (5)Double-Buffered Latches; (6)Surface Mount and DIP Packages; (7)MIL-STD-883 Compliant Versions Available.
