Product Summary

The ADC1241CIJ is a CMOS 12-bit plus sign successive approximation analog-to-digital converter. The analog input to the ADC1241CIJ is tracked and held by the internal circuitry, and therefore does not require an external sample-and-hold. The applications of the ADC1241CIJ are Digital Signal Processing, High Resolution Process Control, Instrumentation.

Parametrics

ADC1241CIJ absolute maximum ratings: (1)Supply Voltage:6.5V; (2)Negative Supply Voltage:-6.5V; (3)Voltage at Logic Control Inputs:-0.3V to (VCC + 0.3V); (4)Voltage at Analog Input (VIN):(V- -0.3V) to (VCC + 0.3V); (5)AVCC-DVCC:0.3V; (6)Input Current at any Pin:±5mA; (7)Package Input Current:±20 mA; (8)Power Dissipation:875 mW; (9)Storage Temperature Range:-65 to +150℃; (10)ESD Susceptability: 2000V; (11)Soldering Information:300℃.

Features

ADC1241CIJ features: (1)Self-calibrating; (2)Internal sample-and-hold; (3)Bipolar input range with ±5V supplies and single +5V reference; (4)No missing codes over temperature; (5)TTL/MOS input/output compatible; (6)Standard 28-pin DIP.

Diagrams

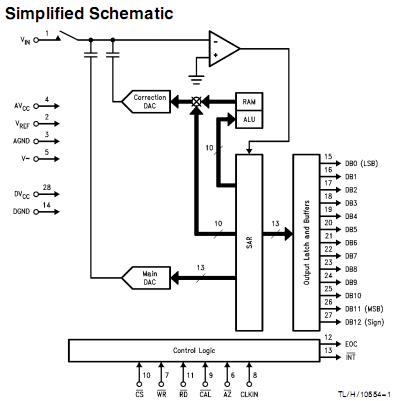

ADC1241CIJ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADC1241CIJ
ADC1241CIJ

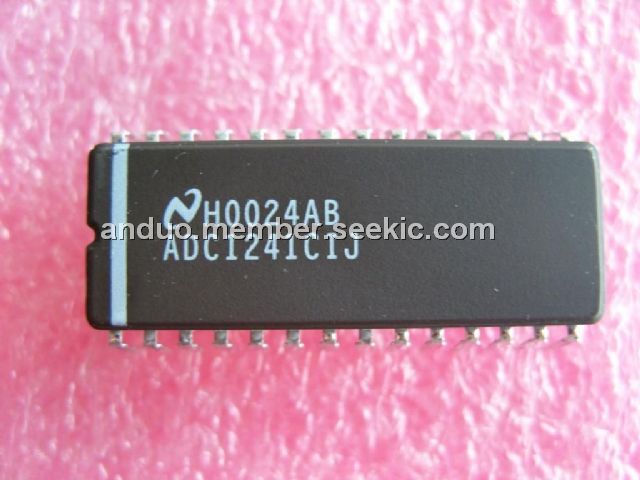

IC ADC 12BIT W/S&H +SGN 28-DIP

Data Sheet

Negotiable
