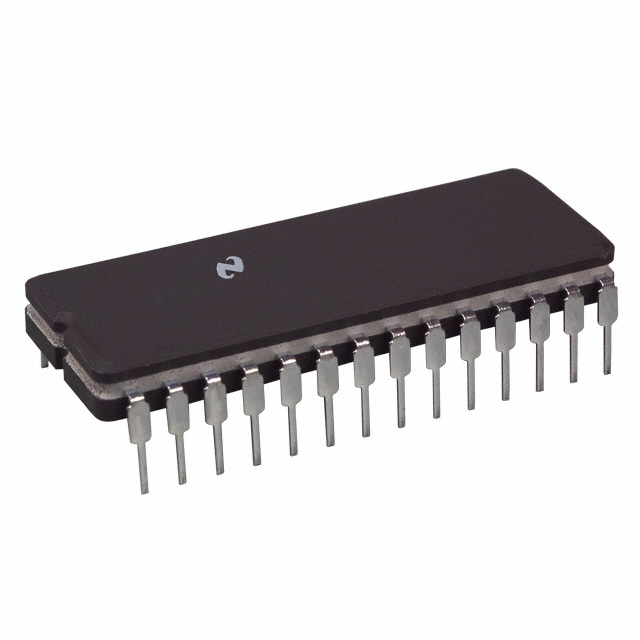

ADC12441CIJ

ADC12441CIJ, 12-Bit Plus Sign A/D Converter, 28-CDIP, 6.5V, 5mA, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $27.60~28.96 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $27.60~28.96

PartNumber:: ADC12441CIJ

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 00+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Anna's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-23

From Other Seller

Part Number:ADC12441CIJ
US $27.60 - 28.96
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

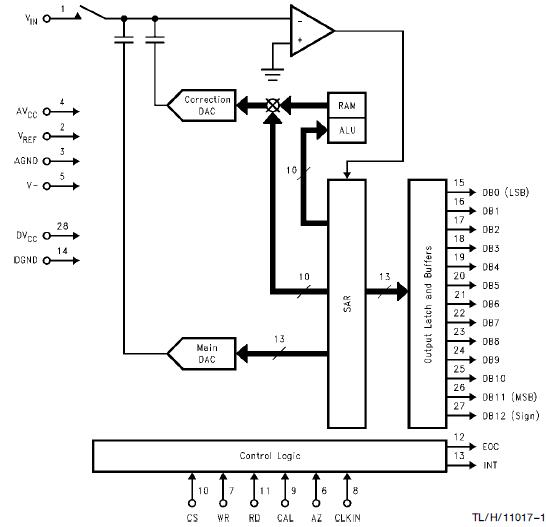

The ADC12441CIJ is a CMOS 12-bit plus sign successive approximation analog-to-digital converter whose dynamic specifications (S/N, THD, etc.) are tested and guaranteed. On request, the ADC12441CIJ goes through a self-calibration cycle that adjusts positive linearity and full-scale errors to less than g(/2 LSB each and zero error to less than ±1 LSB. The ADC12441CIJ also has the ability to go through an Auto-Zero cycle that corrects the zero error during every conversion. The analog input to the ADC12441CIJ is tracked and held by the internal circuitry, and therefore does not require an external sample-and-hold. A unipolar analog input voltage range (0V to a5V) or a bipolar range (-5V to +5V) can be accommodated with g5V supplies. The applications of the ADC12441CIJ include Digital signal processing, Telecommunications, Audio, High resolution process control, Instrumentation.

Parametrics

ADC12441CIJ absolute maximum ratings: (1)Supply Voltage (VCC = DVCC = AVCC): 6.5V; (2)Negative Supply Voltage (V-): -6.5V; (3)Voltage at Logic Control Inputs: -0.3V to (VCC +0.3V); (4)Voltage at Analog Inputs (VIN and VREF): (Vb -0.3V) to (VCC +0.3V); (5)AVCC±DVCC: 0.3V; (6)Input Current at Any Pin: ±5 mA; (7)Package Input Current: ±20 mA; (8)Power Dissipation at 25℃: 875 mW; (9)Storage Temperature Range: -65℃ to +150℃; (10)ESD Susceptability: 2000V; (11)Soldering Information J Package (10 sec.): 300℃.

Features

ADC12441CIJ features: (1)Self-calibration provides excellent temperature stability; (2)Internal sample-and-hold; (3)Bipolar input range with single +5V reference.
