Product Summary

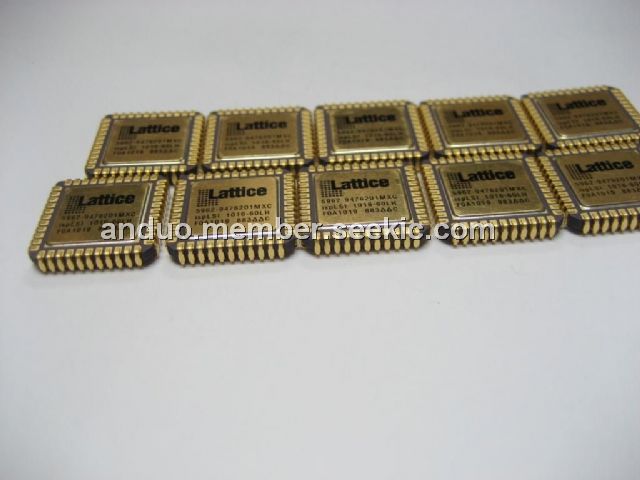

The ISPLSI1016-60LH is an in-system programmable high density PLD. The ISPLSI1016-60LH also has 32 I/O cells, each of which is directly connected to an I/O pin. Each I/O cell can be individually programmed to be a combinatorial input, registered input, latched input, output or bi-directional I/O pin with 3-state control. Additionally, all outputs of the ISPLSI1016-60LJ are polarity selectable, active high or active low. The signal levels are TTL compatible voltages and the output drivers can source 4 mA or sink 8 mA.

Parametrics

ISPLSI1016-60LH absolute maximum ratings: (1)Supply Voltage Vcc: -0.5 to +7.0V; (2)Input Voltage Applied: -2.5 to VCC +1.0V; (3)Off-State Output Voltage Applied: -2.5 to VCC +1.0V; (4)Storage Temperature: -65 to 150℃; (5)Case Temp. with Power Applied: -55 to 125℃; (6)Max. Junction Temp. (TJ) with Power Applied: 150℃.

Features

ISPLSI1016-60LH features: (1)High-density programmable logic; (2)High-speed global interconnect; (3)Wide input gating for fast counters, state machines, address decoders, etc.; (4)Small logic block size for random logic; (5)Security cell prevents unauthorized copying; (6)In-System Programmable. (ISP.) 5-Volt Only; (7)Increased manufacturing yields, reduced time-to-market, and improved product quality.

Diagrams

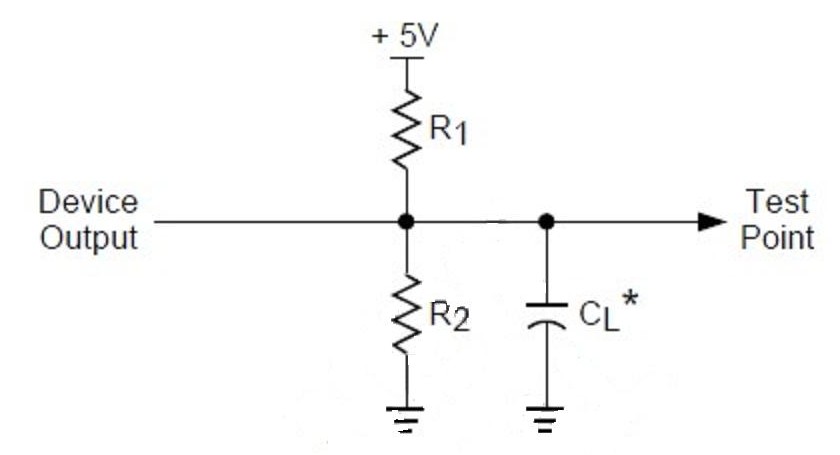

ISPLSI1016-60LH circuit diagram
