Product Summary

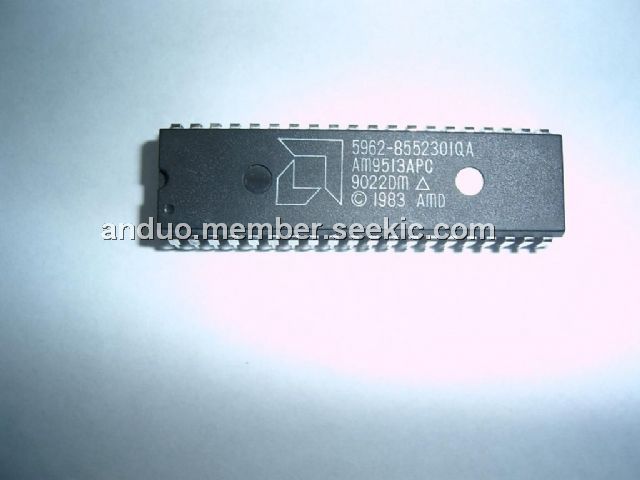

The AM9513APC is a system timing controller. The AM9513APC system controller is an LSI circuit designed to service many types of counting, sequencing and timing applications. It provides the capability for programmable frequency synthesis, high resolution programmable duty cycle waveforms, retriggerable digital oneshots, time-of-day clocking, coincidence alarms, complex pulse generation, high resolution baud rate generation, frequency shift keying, stop-watching timing, event count accumulation, waveform analysis.
Parametrics
AM9513APC maximum ratings: (1)Storage temperature: -65 to +150; (2)Vcc with respect to VSS: -0.5 V to +7.0V; (3)All signal voltages with respect to Vss: -0.5V to +7.0V; (4)Power dissipation: 1.5W.
Features
AM9513APC features: (1)Five independent 16 bit counters; (2)High speed counting rates; (3)Up/ down and binary/BCD counting; (4)Internal oscillator frequency source; (5)Tapped frequency output; (6)8 bit or 16 bit bus interface; (7)Time of day option; (8)Alarm comparators on counters 1 and 2; (9)Complex duty cycle outputs; (10)One-shot or continuous selection; (11)Programmable count source selection.

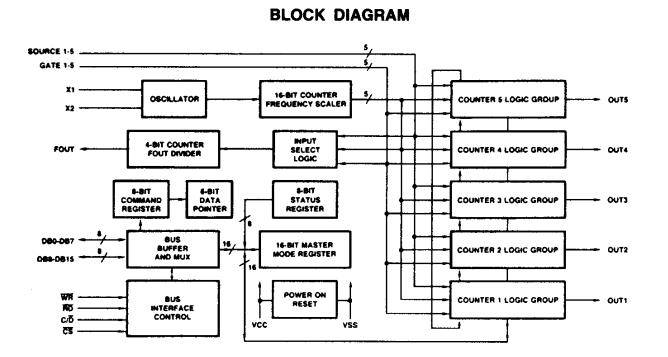

Diagrams
 |
