Product Summary

The CY7C276-25HC is a high-performance 16K-word by 16-bit CMOS PROM. The CY7C276-25HC is available in a 44-pin PLCC and a 44-pin LCC packages, and is 100% reprogrammable in windowed packages. The memory cells utilize proven EPROM floating gate technology and word-wide programming algorithms.

Parametrics

CY7C276-25HC absolute maximum ratings: (1)Storage Temperature:–65°C to+150°C; (2)Ambient Temperature with Power Applied:–55°C to+125°C; (3)Supply Voltage to Ground Potential:–0.5V to+7.0V; (4)DC Voltage Applied to Outputs in High Z State:–0.5V to+7.0V; (5)DC Input Voltage:–3.0V to +7.0V.

Features

CY7C276-25HC features: (1)0.8-micron CMOS for optimum speed/power; (2)High speed:25-ns access time; (3)16-bit-wide words; (4)Three programmable chip selects; (5)Programmable output enable; (6)44-pin PLCC and 44-pin LCC packages; (7)100% reprogrammable in windowed packages; (8)TTL-compatible I/O; (9)Capable of withstanding greater than 2001V static discharge.

Diagrams

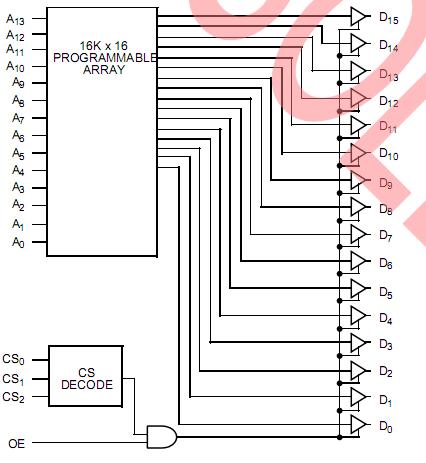

CY7C276-25HC block diagram
