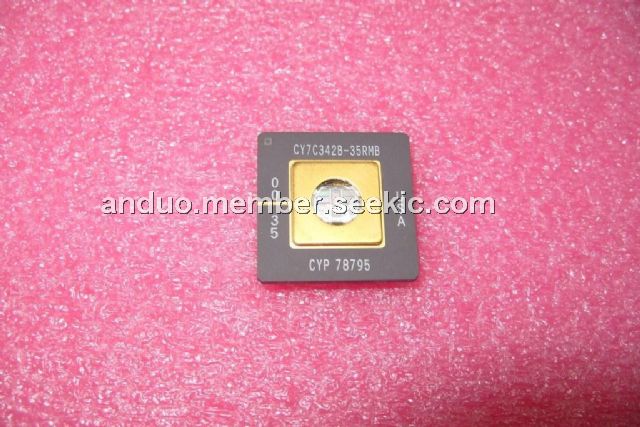

Product Summary
The CY7C342B-35RMB is an Erasable Programmable Logic Device(EPLD)in which CMOS EPROM cells are used to configure logic functions within the device.The MAX architecture is 100% user configurable,allowing the devices to acconmmodate a variety of independent logic functions.
Parametrics
CY7C342B-35RMB absolute maximum ratings: (1)Storage Temperature: –65℃ to +135℃; (2)Ambient Temperature with Power Applied: –65℃ to+135℃; (3)Maximum Junction Temperature(Under Bias): 150℃; (4)Supply Voltage to Ground Potential[1]: –2.0V to+7.0V; (5)DC Output Current, per Pin[1]: –25 mA to +25 mA; (6)DC Input Voltage[1]: -2.0V to +7.0V.
Features
CY7C342B-35RMB features: (1)128 macrocells in eight logic array blocks (LABs); (2)Eight dedicated inputs, 52 bidirectional I/O pins; (3)Programmable interconnect array; (4)Advanced 0.65-micron CMOS technology to increase performance; (5)Available in 68-pin HLCC, PLCC, and PGA packages.
Diagrams
