Product Summary
The DAC71-CSB-I is a complete monolithic digital-to-analog converter including a +10V temperature compensated reference, current-to-voltage amplifier, 16-bit parallel interface that is double buffered, and an asynchronous clear function which immediately sets the output voltage to one-half of full-scale.
Parametrics
DAC71-CSB-I absolute maximum ratings: (1)+VCC to COMMON: 0V, +17V; (2)–VCC to COMMON: 0V, –17V; (3)+VCC to –VCC: 34V; (4)Digital Inputs to COMMON:–1V to +VCC; (5)External Voltage Applied to BPO and Range Resistors: ±VCC; (6)VREF OUT: Indefinite Short to COMMON; (7)VOUT: Indefinite Short to COMMON; (8)Power Dissipation: 750mW; (9)Storage Temperature: –60 to +150℃; (10)Lead Temperature (soldering, 10s): +300℃.
Features
DAC71-CSB-I features: (1)high-speed 16-bit parallel double-buffered interface; (2)voltage output: 0 to +10V; (3)13-, 14-, 15-bit linearity grades; (4)16-bit monotonic over temperature (L grade); (5)power dissipation: 600mW max; (6)gain and offset adjust: Convenient for Auto-Cal D/A Converters; (7)28-lead DIP and SOIC packages.

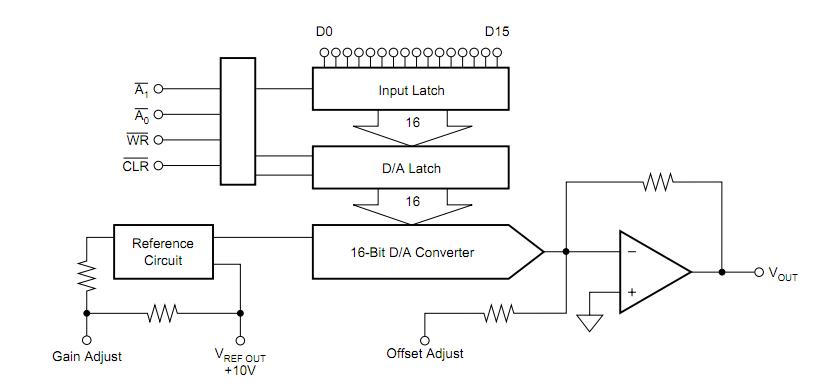

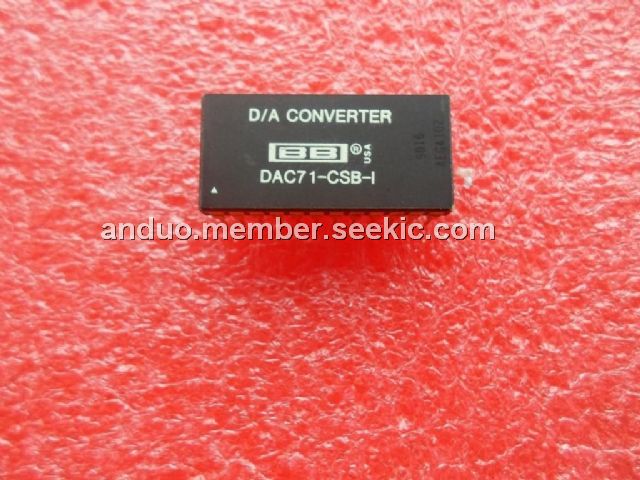

Diagrams
 |
