Product Summary

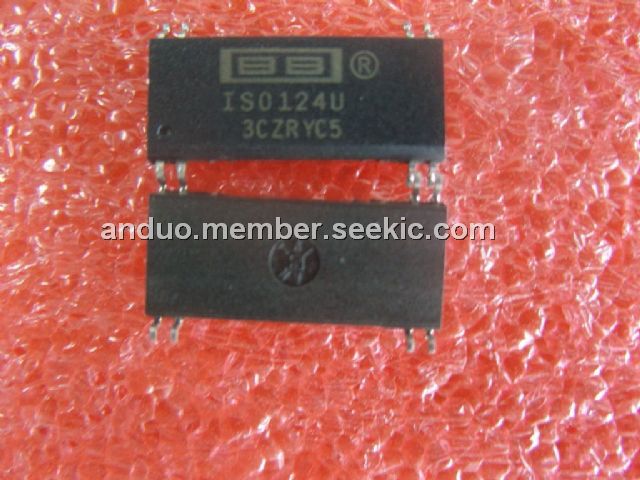

The ISO124U is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2pF differential capacitive barrier. With digital modulation the barrier characteristics do not affect signal integrity, resulting in excellent reliability and good high frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package. The ISO124U is easy to use. No external components are required for operation. The key specifications are 0.010% max nonlinearity, 50kHz signal bandwidth, and 200mV/℃ VOS drift. A power supply range of ±4.5V to ±18V and quiescent currents of ±5.0mA on VS1 and ±5.5mA on VS2 make these amplifiers ideal for a wide range of applications. The ISO124U is available in 16-pin plastic DIP and 28-lead plastic surface mount packages. The applications of the ISO124U include industrial process control: Transducer Isolator, Isolator for Thermo-couples, RTDs, Pressure Bridges, and Flow Meters, 4mA to 20mA Loop Isolation, ground loop elimination, motor and scr control, power monitoring, pc-based data acquisition and test equipment.

Parametrics

ISO124U absolute maximum ratings: (1)Supply Voltage: ±18V; (2)VIN: ±100V; (3)Continuous Isolation Voltage: 1500Vrms; (4)Junction Temperature: +150℃; (5)Storage Temperature: +85℃; (6)Lead Temperature (soldering, 10s): +300℃; (7)Output Short to Common: Continuous.

Features

ISO124U features: (1)100% tested for high-voltage breakdown; (2)rated 1500Vrms; (3)high IMR: 140dB at 60Hz; (4)0.010% max nonlinearity; (5)bipolar operation: VO = ±10V; (6)16-pin plastic DIP and 28-lead SOIC; (7)ease of use: fixed unity gain configuration; (8)±4.5V to ±18V supply range.

Diagrams

ISO124U pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ISO124U
ISO124U

Texas Instruments

Isolation Amplifiers Precision Low Cost Isolation Amp

Data Sheet

0-1: $11.87
1-10: $10.80
10-25: $9.98
25-50: $9.64
ISO124U/1K
ISO124U/1K

Texas Instruments

Isolation Amplifiers Precision Low Cost Isolation Amp

Data Sheet

0-786: $5.71
786-1000: $5.60
ISO124UE4
ISO124UE4

Texas Instruments

Isolation Amplifiers Precision Low Cost Isolation Amp

Data Sheet

0-1: $11.87
1-10: $10.80
10-25: $9.98
25-50: $9.64
ISO124U/1KE4
ISO124U/1KE4

Texas Instruments

Isolation Amplifiers Precision Low Cost Isolation Amp

Data Sheet

0-786: $5.71
786-1000: $5.60
