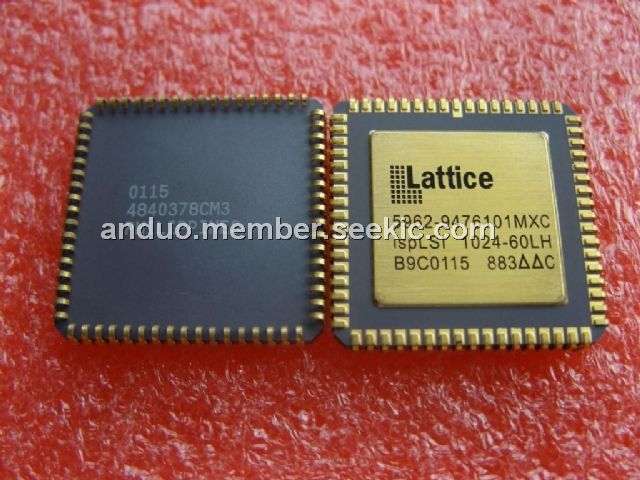

Product Summary

The ISPLSI1024-60LH is a High-Density Programmable Logic Device processed in full compliance to MIL-STD-883. This military grade ISPLSI1024-60LH contains 144 Registers, 48 Universal I/O pins, six Dedicated Input pins, four Dedicated Clock Input pins and a Global Routing Pool (GRP). The GRP provides complete interconnectivity between all of these elements. The ISPLSI1024-60LH features 5-Volt in-system programmability and in-system diagnostic capabilities.

Parametrics

ISPLSI1024-60LH absolute maximum ratings: (1)Supply Voltage Vcc:-0.5 to +7.0V; (2)Input Voltage Applied:-2.5 to VCC +1.0V; (3)Off-State Output Voltage Applied:-2.5 to VCC +1.0V; (4)Storage Temperature:-65 to 150℃; (5)Case Temp. with Power Applied:-55 to 125℃; (6)Max. Junction Temp. (TJ) with Power Applied:150℃.

Features

ISPLSI1024-60LH features: (1)High-Speed Global Interconnect; (2)4000 PLD Gates; (3)48 I/O Pins, Six Dedicated Inputs; (4)144 Registers; (5)Wide Input Gating for Fast Counters, State Machines, Address Decoders, etc.; (6)Small Logic Block Size for Fast Random Logic; (7)Security Cell Prevents Unauthorized Copying; (8)fmax = 60 MHz Maximum Operating Frequency; (9)tpd = 20 ns Propagation Delay; (10)TTL Compatible Inputs and Outputs; (11)Electrically Erasable and Reprogrammable; (12)Non-Volatile E2CMOS Technology; (13)100% Tested; (14)Complete Programmable Device Can Combine Glue Logic and Structured Designs; (15)Four Dedicated Clock Input Pins; (16)Synchronous and Asynchronous Clocks; (17)Flexible Pin Placement; (18)Optimized Global Routing Pool Provides Global Interconnectivity.

Diagrams

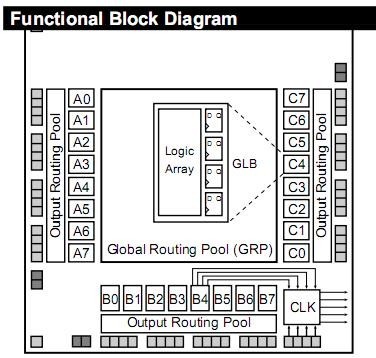

ISPLSI1024-60LH block diagram
