Product Summary

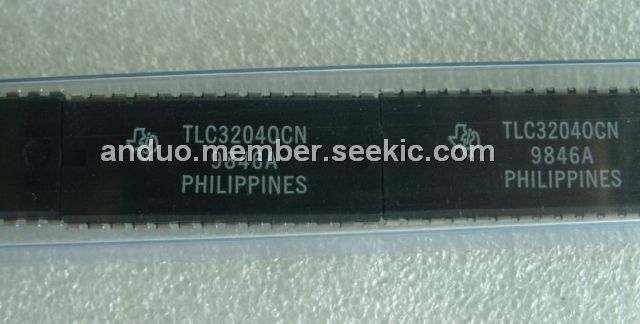

The TLC32040CN is a complete analog-to-digital and digital-to-analog input/output system. The TLC32040CN integrates a bandpass switched-capacitor antialiasing input filter, a 14-bit-resolution A/D converter, four microprocessor-compatible serial port modes, a 14-bit-resolution D/A converter, and a low-pass switched-capacitor output-reconstruction filter. The TLC32040CN offers numerous combinations of master clock input frequencies and conversion/sampling rates, which can be changed via digital processor control.
Parametrics
TLC32040CN absolute maximum ratings: (1)Supply voltage range, VCC+:–0.3 V to 15 V; (2)Supply voltage range, VDD:–0.3 V to 15 V; (3)Output voltage range, VO:–0.3 V to 15 V; (4)Input voltage range, VI:–0.3 V to 15 V; (5)Digital ground voltage range:–0.3 V to 15 V; (6)Operating free-air temperature range, TA:0℃ to 70℃; (7)Storage temperature range, Tstg:–40℃ to 125℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds:260℃.
Features
TLC32040CN features: (1)14-Bit Dynamic Range ADC and DAC; (2)Variable ADC and DAC Sampling Rate Up to 19,200 Samples per Second; (3)Switched-Capacitor Antialiasing Input Filter and Output-Reconstruction Filter; (4)Serial Port for Direct Interface to TMS32011, TMS320C17, TMS32020, and TMS320C25 Digital Signal Process; (5)Synchronous or Asynchronous ADC and DAC Conversion Rate With Programmable Incremental ADC and DAC Conversion Timing Adjustments; (6)Serial Port Interface to SN74299 Serial-to-Parallel Shift Register for Parallel Interface to TMS32010, TMS320C15, or Other Digital Processors; (7)600-Mil Wide N Package (CL to CL); (8)2s Complement Format; (9)CMOS Technology.
