Product Summary

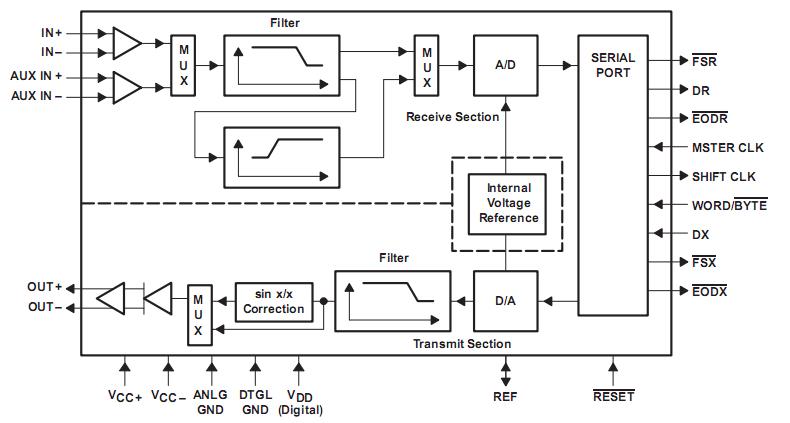

The TLC32044CN is a voice-band analog interface circuit. The TLC32044CN integrates a bandpass switched-capacitor antialiasing input filter, a 14-bit-resolution A/D converter, four microprocessor-compatible serial port modes, a 14-bit-resolution D/A converter, and a low-pass switched-capacitor output-reconstruction filter. The TLC32044CN offers numerous combinations of master clock input frequencies and conversion/sampling rates, which can be changed via digital processor control.

Parametrics

TLC32044CN absolute maximum ratings: (1)Supply voltage range, VCC+:–0.3 V to 15 V; (2)Supply voltage range, VDD:–0.3 V to 15 V; (3)Output voltage range, VO:–0.3 V to 15 V; (4)Input voltage range, VI:–0.3 V to 15 V; (5)Digital ground voltage range:–0.3 V to 15 V; (6)Operating free-air temperature range: 0℃ to 70℃; (7)Storage temperature range: –40℃ to 125℃.

Features

TLC32044CN features: (1)14-Bit Dynamic Range ADC and DAC; (2)2’s Complement Format; (3)Variable ADC and DAC Sampling Rate Up to 19,200 Samples per Second; (4)Switched-Capacitor Antialiasing Input Filter and Output-Reconstruction Filter; (5)Serial Port for Direct Interface to TMS(SMJ)320C17, TMS(SMJ 32020,TMS(SMJ)320C25,; (6)and TMS320C30 Digital Signal Processors; (7)Synchronous or Asynchronous ADC and DAC Conversion Rates With Programmable Incremental ADC and DAC Conversion Timing Adjustments; (8)Serial Port Interface to SN74(54)299 Serial-to-Parallel Shift Register for Parallel Interface to TMS(SMJ)32010, TMS(SMJ)320C15, or Other Digital Processors; (9)Internal Reference for Normal Operation and External Purposes, or Can Be Overridden by External Reference; (10)CMOS Technology.
