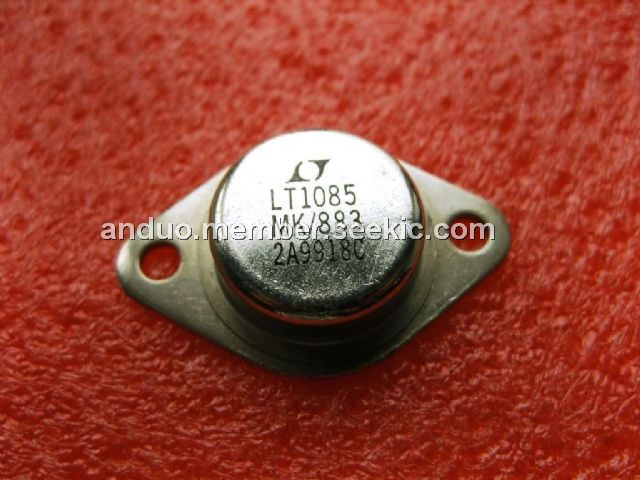

Product Summary
The lt1085mk/883 positive adjustable regulator is designed to provide 3A, 5A and 7.5A with higher efficiency than currently available device. All internal circuitry is designed to operate down to 1V input to output differential and the dropout voltage is fully specified as a function of load current.
Parametrics
lt1085mk/883 absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Input Voltage:30V; (3)Operating Junction Temperature Range, Control Section: 0℃ to 125℃; (4)Operating Junction Temperature Range, Power Transistor: 0℃ to 150℃; (5)Storage Temperature Range: -65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.
Features
lt1085mk/883 features: (1)Three-Terminal 3.3V, 3.6V, 5V and 12V; (2)Output Current of 3A, 5A or 7.5A; (3)Operates Down to 1V Dropout; (4)Guaranteed Dropout Voltage at Multiple Current Levels; (5)Line Regulation: 0.015%; (6)Load Regulation: 0.1%; (7)100% Thermal Limit Functional Test; (8)Adjustable Versions Available.
Diagrams
