Product Summary

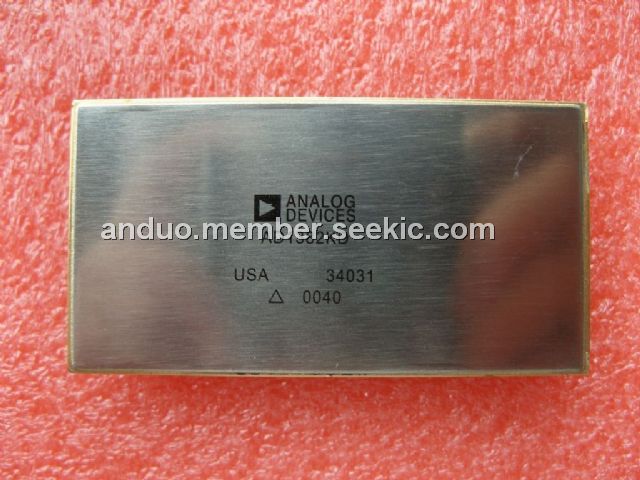

The AD1382KD is a complete 500KHz, 16-bit, sampling analog-to-digital converter contained in a single package. The applications of the AD1382KD are CAT, magnetic resonance, vibration analysis, parametric measurement unit, waveform/transient recorders, analytical instruments, sonar, radar.
Parametrics
AD1382KD absolute maximum ratings: (1)+VS to AGND:18V; (2)-VS to AGND:-18V; (3)VDD to PGND:7V; (4)VSS to PGND:-7V; (5)AGND to PGND:±0.3V; (6)digital inputs:-0.3 to VDD+0.3V; (7)ambient temperature:0 to +70℃; (8)storage temperature:-65 to 150℃.
Features
AD1382KD features: (1)single package; (2)16-bit resolution; (3)500kHz sampling rate; (4)0.0015% FSR INL; (5)±5, ±10V bipolar input; (6)zero offset autocalibration.

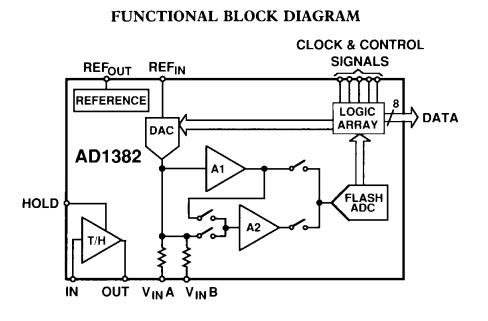

Diagrams
 |
