Product Summary

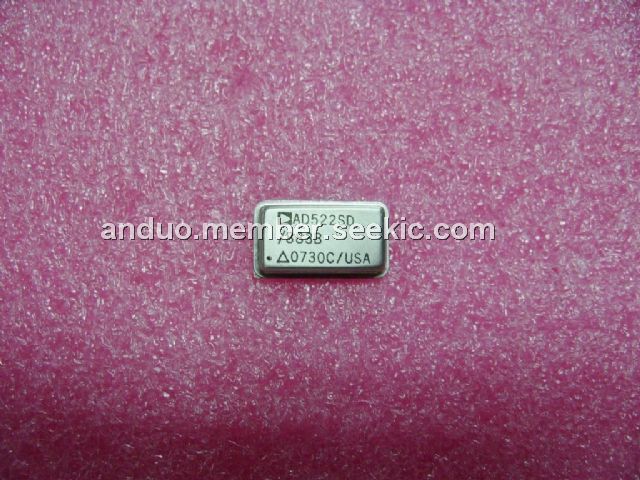

The AD522SD is a precision IC instrumentaion amplifier designed for data acquisition applications requiring high accuracy under worst-case operating conditions. An outstanding combination of high linearity, high common mode rejection, low voltage drift, and low noise makes the AD522SD suitable for use in many 12-bit data acquisiton systems.
Parametrics
AD522SD absolute maximum ratings: (1)maximum differential input, linear:±10V; (2)maximum differential inpu, safe:±20V; (3)maximum common mode, linear:±10V; (4)maximum common mode, safe:±15V; (5)operating temperature:-55 to +125℃; (6)storage temperature:-65 to +150℃.
Features
AD522SD features: (1)low drift:2.0uV/℃; (2)low nonliearity:0.005%; (3)high CMRR:＞110dB; (4)low noise:1.5uV p-p; (5)low initial VOS:100uV.
Diagrams
 |
